| Rib Height: | 5mm | Hole: | 10*20mm |
|---|---|---|---|
| Length: | 2m | Rib Distance: | 150mm |
| Material: | Galvaninzed Plate | Width: | 610mm |
| High Light: | 610mm width rib lath mesh,2m length rib lath mesh,diamond hole galvanised rib lath |
||

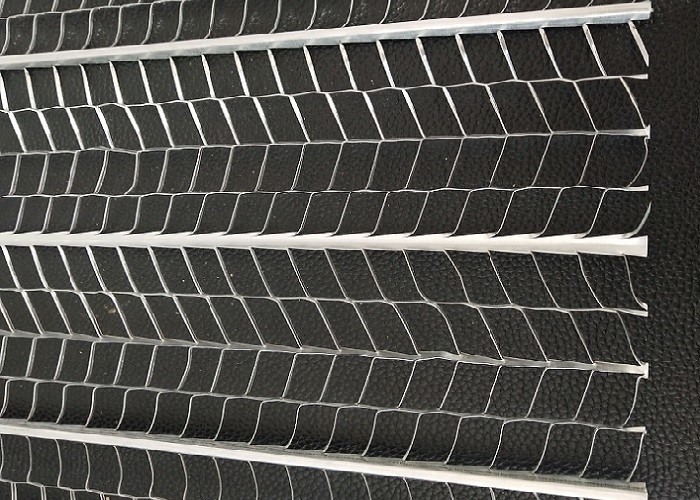

610mm Width Diamond Hole Galvanised Metal Rib Lath Mesh 2m Length
JF0508 have 5 ribs ,the rib distance is 150mm and the hole is 10*20mm.
Rib Lath Mesh is a kind of expanded metal from galvanized steel Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface. Rib Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.
Galvanized Rib Lath Mesh material:
Galvanized plate
Specification:
| TYPE | THICKNESS(MM) | SW*LW(mm) | Tendons High(mm) | Reinforcement Distance(mm) | Width(MM) |
| JF0508 | 0.25-0.4mm | 10*20mm | 5 | 150 | 610 |
packing: 750pcs / pallet
popular length: 2m ,2.1m, 2.2m, 2.4m
