100mm*100mm Square Anti Split Plates Galvanised

Large Image : 100mm*100mm Square Anti Split Plates Galvanised

Product Details:

Place of Origin:	ANPING HEBEI CHINA
Brand Name:	JiaFu
Model Number:	JFAS01

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Packaging Details:	CARTON
Delivery Time:	20-30DAYS
Payment Terms:	T/T
Supply Ability:	1000PCS/DAY

Contact Now

Detailed Product Description

Material:	Galvanized Plate	Thickness:	1mm
Used:	To Prevent Split In Hardwood Poles And Logs	Type:	Square And Rectangle
Width:	50mm-200mm	Length:	75mm-15m
Highlight:	square anti split plates , square galvanised nail plates , anti split plates galvanised

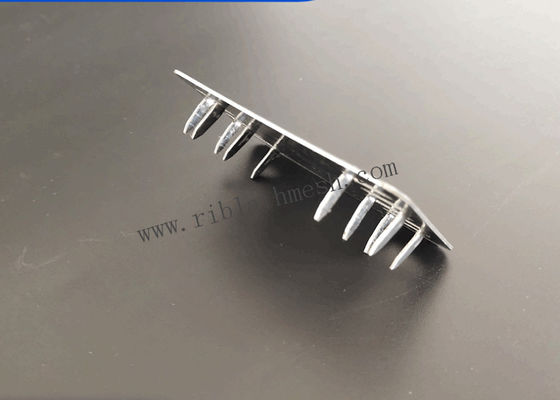

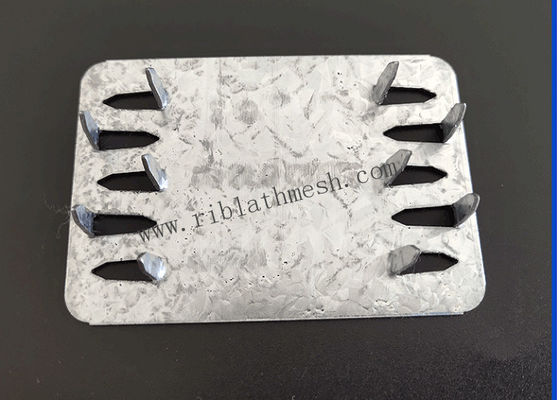

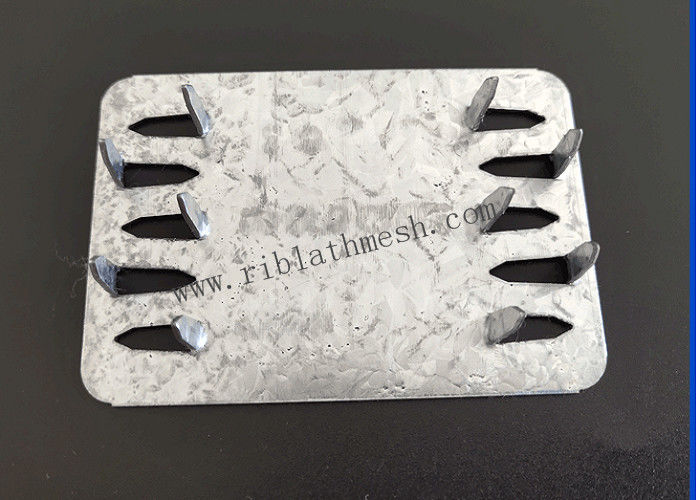

100mm *100mm Square Anti Plates Truss Nail To Prevent Split In Hardwood Poles And Logs.

Anti Split Plates are used to prevent split in hardwood poles and logs. This type is rectangle or coil. Timber naturally swells and shrinks as it weathers causing it to weaken. Anti-split plates can help reduce splitting in timber, which occurs as a result of weathering, but not all plates are created equal. Anti-split plates are easy to press and eliminate timbersplitting while reducing tooth withdrawal.

Material:

Hot Dippd Plate.Zinc:80g/m2 or 275g/m2

Specification:

TRUSS NAIL PLATE SINGLE NAIL

NO	SIZE(INCH)	SIZE(MM)	SPECIFICATION(MM)
NO	SIZE(INCH)	SIZE(MM)	W	L	T
JF-ASPS5075	2’’×3’’	50mm×75mm	50mm	75mm	1mm
JF-ASPS50100	2’’×4’’	50mm×100mm	50mm	100mm	1mm
JF-ASPS75150	3’’×6’’	75mm×150mm	75mm	150mm	1mm
JF-ASPS100100	4’’×4’’	100mm×100mm	100mm	100mm	1mm
JF-ASPS100125	4’’×5’’	125mm×125mm	100mm	125mm	1mm
JF-ASPS100150	4’’×6’’	100mm×150mm	100mm	150mm	1mm
JF-ASPS150150	6’’×6’’	150mm×150mm	150mm	150mm	1mm
JF-ASPS150175	6’’×7’’	150mm×175mm	150mm	175mm	1mm
JF-ASPS200200	8’’×8’’	200mm×200mm	200mm	200mm	1mm
JF-ASPS200250	8’’×10’’	200mm×250mm	200mm	250mm	1mm
JF-ASPS7510	3’’×400’’	75mm×10M	75mm	10M(COIL)	1mm
JF-ASPS75150	3’’×600’’	75mm×15M	75mm	15M(COIL)	1mm
JF-ASPS10010	4’’×400’’	100mm×10M	100mm	10M(COIL)	1mm
JF-ASPS10015	4’’×600’’	100mm×15M	100mm	15M(COIL)	1mm

FEATURES

• Easy to press

• Eliminate timber splitting

• Reduce tooth withdrawal

100mm*100mm Square Anti Split Plates Galvanised 0
