|MATERIAL:||Galvanized Plate||Name:||Brickwork Reinforcement Mesh|
0.35mm thickness brickwork reinforcement mesh,
brickwork reinforcement mesh 114mm width,
galvanized wire mesh for brick wall

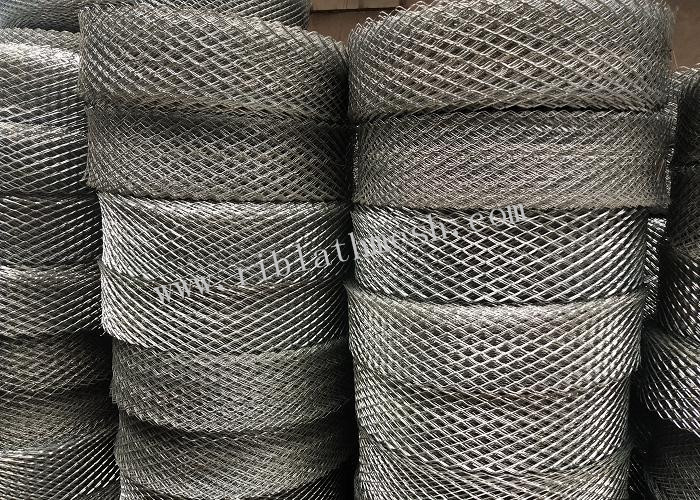

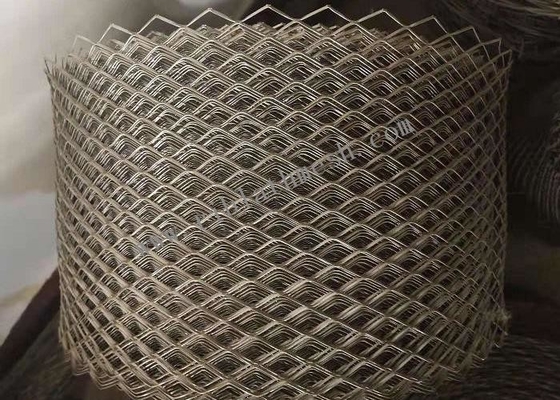

0.35mm Thickness Galvanized Brickwork Reinforcement Mesh 114mm Width
Brickwork Reinforcement Mesh are produced for brick and block work reinforcement.The popular thickness is 0.35mm.We can produce the length from 10m-100m.Their primary uasge is to prevent cracking, embedded in the normal thickness of a brickwork joint, brick reinforcement meshes reduce the detrimental effects of vibration and changes of temperature. Brick reinforcement meshes increase resistance to tensional stress.
Hole Type: Diamond
Hole Size: 16*28mm Llike the photo
width: 10cm, 15cm, 20cm,30cm
|Hole Type||Hole Size||Width||Length|
How to Install Brickwork Reinforcement Mesh:
The coil mesh is laid in strips between brick or block courses leaving approximately 25mm clearance from the faces of the work. Where coil mesh joins are required, ensure they overlap by at least 75mm.
The reinforcement is then simply embedded in the mortar for the next course.
In most instances, application every third course, for the full length of the wall, will be sufficient.
To reinforce brickwork at an opening, e.g. window or door, mesh should be installed to overlap part of the opening, and part of the solid wall.
Thinking of the width of the opening, lay the mesh approximately a quarter of the way across the opening. The mesh should lie the same distance again, across the solid wall.
Above windows or doors, install Catnic mesh for 2-3 courses, starting from the course above the lintel .
