Construction Expanded High Rib Mesh 0.3mm Thickness Hot Dipped Galvanized Material

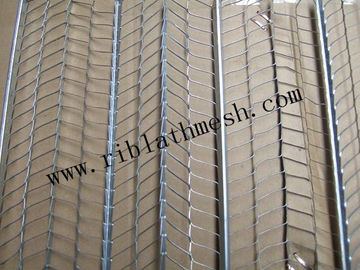

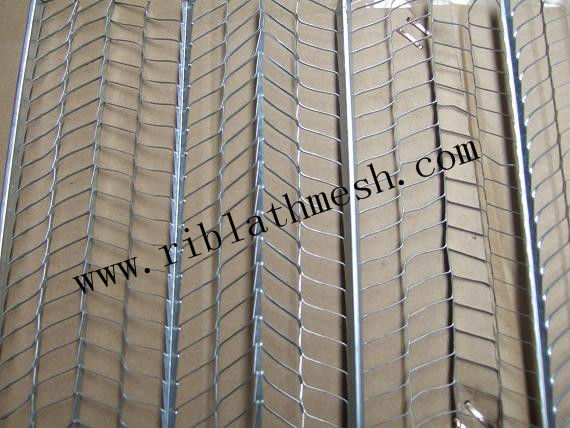

Large Image : Construction Expanded High Rib Mesh 0.3mm Thickness Hot Dipped Galvanized Material

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	XINGTAI
Certification:	ISO9000:2000
Model Number:	RLAG30-50

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Packaging Details:	pallet
Delivery Time:	15 days
Supply Ability:	3000 pieces/days

Contact Now

Detailed Product Description

Material:

Hot-dipped Galvanized Sheet

Thinckness:

0.3mm

Width:

610mm

Length:

2.1m-2.5m

Highlight:

flat rib lath

rib lath cladding

Rib Lath Mesh 0.3mm thickness Galvanized Expanded Metal Rib Lath For Construction

Could you tell us the thickness, Hole size, Rib distance , Width x length request?
(7 rib 8 opening, 5 rib 8 opening, 9 rib 4 opening, 7 rib 4 opening)

Weight Per Square Yard
2.75 lb. / sy	Flat Rib	Galvanized
3.4 lb. / sy	Flat Rib	Galvanized
3.4 lb. / sy	3/8" High Rib	Galvanized
4.0 lb. / sy	3/8" High Rib	Galvanized

flat rib lath,

rib lath cladding,

hi rib mesh

Contact Details

ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD

Tel: 86-0318-7753558

Fax: 86-0318-7753558

Other Products

Plate Galvanised Rib Lath 0.35mm / 0.4mm Thickness

Width: 400-900mm

Hole: 4.5*10mm

Thickness: 0.35mm-0.4mm

Material: Galvanized plate

Jf0708 Galvanized Rib Lath Mesh 0.28mm Thickness 600mm Width

Name: Galvanized Rib Lath Mesh

Width: 600mm

Length: 2.5m

Matarial: Galvanized Sheet

7*20mm Expanded Metal Rib Lath For Concrete Construction

Name: Rib Lath

USED: Concrete Construction

width: 600mm

Length: 2.5m

610mm Width Rib Lath Mesh Diamond Hole Galvanised Metal 2m Length

Rib Height: 5mm

Hole: 10*20mm

Length: 2m

Rib Distance: 150mm

Galvanised Rib Lath Mesh For Plaster Walls / Suspended Ceilings

Name: Galvanized Rib Lath Mesh

Width: 600mm

Length: 2-3m

Matarial: Galvanized Sheet

Thickness(mm)	Rib Distance(mm)	Weight(KG)	Width X length(mm)
0.30	100	1.79	610 x 2440
0.35	100	2.09	610 x 2440
0.40	100	2.38	610 x 2440
0.45	100	2.68	610 x 2440
0.5	100	2.98	610 x 2440

Thickness(mm)	Rib Distance(mm)	Weight(KG)	Width X length(mm)
0.30	150	1.31	610 x 2440
0.35	150	1.53	610 x 2440
0.40	150	1.75	610 x 2440
0.45	150	1.96	610 x 2440
0.5	150	2.17	610 x 2440
