stucco diamond mesh,
masonry reinforcement mesh

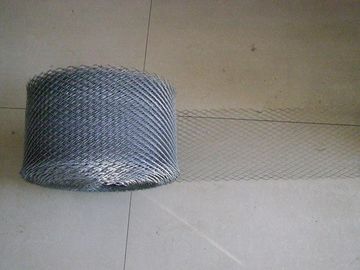

Description of Brick Wall Mesh:
Brick Mesh is essential reinforcement components for masonry work to provide additional resistance to stresses, vibration and thermal movement of the brick wall. The lowest layer of Brick Mesh should be laid over the 1st or 2nd course and at every subsequent 4th course of brickwork. There should be a minimum 150mm lapping where different sections of mesh reinforcement overlap.
Material: Galvanized steel, stainless steel
Width: 65mm, 100mm, 175mm, 225mm, 300mm
Length: 1.2m, 20m
Expanded metal is mainly used in concrete slab, roads, paving, foundations, marine work, bank strong rooms, partition slabs, concrete block work, asphalt guttering etc.
Specification of Brick Wall Mesh
Specification of Brick Wire Mesh
Mesh size: 12x25mm
Roll width: 65mm, 75mm, 100mm, 175mm, 225mm, 300mm etc.
Roll length: 10m, 30m, 50m, 100m etc.

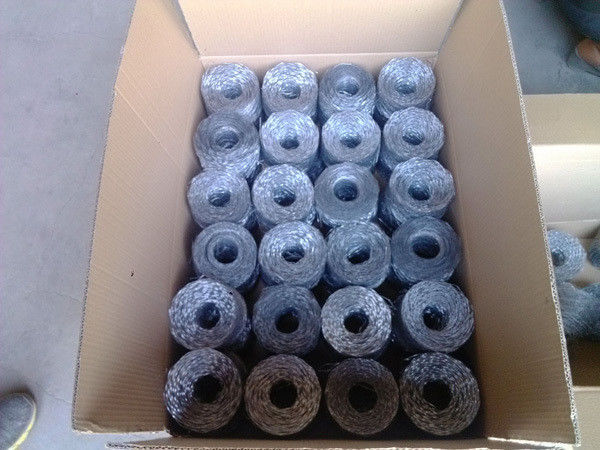

Packing: On cartons or as your requirement.
Width x Length
|FLS-01||SS||0.9||65mm x 100m||For 100mm Wall|
|FLS-02||SS||0.9||115mm x 100m||For 150mm Wall|
|FLS-03||SS||0.9||175mm x 100m||For 200mm Wall|
|FLS-04||SS||0.9||225mm x 100m||For 250mm Wall|

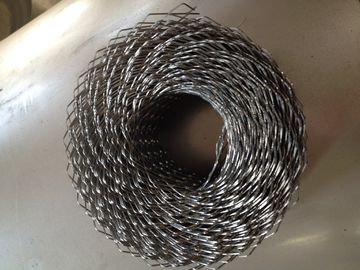

Description of Brick Mesh:
Brick Wire Mesh is easy to handle, and when laid embedded in the mortar joining between brickwork or blockwore courses, forms an integral structure of great tcnsilc strcngth which assists in the resistance, vibrations and thermal changes.
The range of reinforcement coils satisfies most wall thickness. Laid on the mortar bed with 25mm clearance to the outside face of the wall and lapped ant least 75mm, if joining lengths.
The reinforcement is then embedded completely and for most applications, every third course is suffcient.
Brick Mesh Installation:
Fix into mortar between brick courses leaving 25mm clearance from face of brickwork. All joints require an overlap of at least 75mm. The mesh can be laid every third brickwork course for most reinforcement.
Brick Mesh Applications:
Concrete slabbing, roads, paving, foundations, marine work, bank strong rooms, partition slabs, concrete block work, asphalt guttering and so on
