380g/M2 Anti - Cracking Galvanized Reinforcing Mesh Diamond Hole Type

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

380g/M2 Anti - Cracking Galvanized Reinforcing Mesh Diamond Hole Type

380g/M2 Anti - Cracking Galvanized Reinforcing Mesh Diamond Hole Type
380g/M2 Anti - Cracking Galvanized Reinforcing Mesh Diamond Hole Type 380g/M2 Anti - Cracking Galvanized Reinforcing Mesh Diamond Hole Type

Large Image :  380g/M2 Anti - Cracking Galvanized Reinforcing Mesh Diamond Hole Type

Product Details:
Place of Origin: ANPING HEBEI CHINA
Brand Name: JIAFu
Model Number: JFBRS380
Payment & Shipping Terms:
Minimum Order Quantity: 500m2
Packaging Details: CARTON OR PALLET
Delivery Time: 15-20
Supply Ability: 5000M2/DAY
Detailed Product Description
MATERIAL: Galvanized Plate Name: Brickwork Reinforcement Mesh
Thickness: 0.35mm Length: 10-100m
Width: 10cm-30cm Weight: 380/m2
High Light:

brick wall reinforcing mesh

,

brick wire mesh



380g/m2 Anti-Cracking Reinforcement Reinforcing Brick Wall Mesh 40m Length

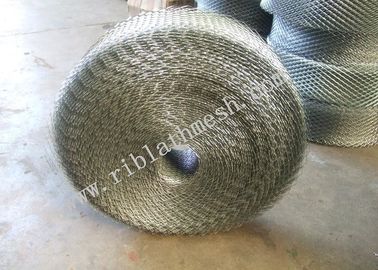

Brick Wall Mesh is made of hot dipped plate.This material does not rust easily.Brick Wall  Mesh   for use primarily as an anti-cracking reinforcement in the construction of brick and block masonry. Coil mesh is available in a variety of widths to suit most wall constructions and is supplied coiled for ease of handling. This product is easy to use without welding.Additional applications include strengthening cornices, low walls and balconies over door and window openings.





Specification:

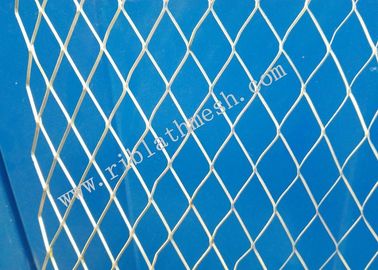

Hole Type: Diamond

Hole Size: 16*28mm Llike the photo

width: 10cm, 15cm, 20cm,30cm

Length: 10m-100m

Hole Type Hole Size Width Length
Diamond 16*28mm 10cm-30cm 10-100m









How to Install  Brickwork Reinforcement Mesh:

The coil mesh is laid in strips between brick or block courses leaving approximately 25mm clearance from the faces of the work. Where coil mesh joins are required, ensure they overlap by at least 75mm.

The reinforcement is then simply embedded in the mortar for the next course.

In most instances, application every third course, for the full length of the wall, will be sufficient.

To reinforce brickwork at an opening, e.g. window or door, mesh should be installed to overlap part of the opening, and part of the solid wall.

Thinking of the width of the opening, lay the mesh approximately a quarter of the way across the opening. The mesh should lie the same distance again, across the solid wall.

Above windows or doors, install Catnic mesh for 2-3 courses, starting from the course above the lintel .
