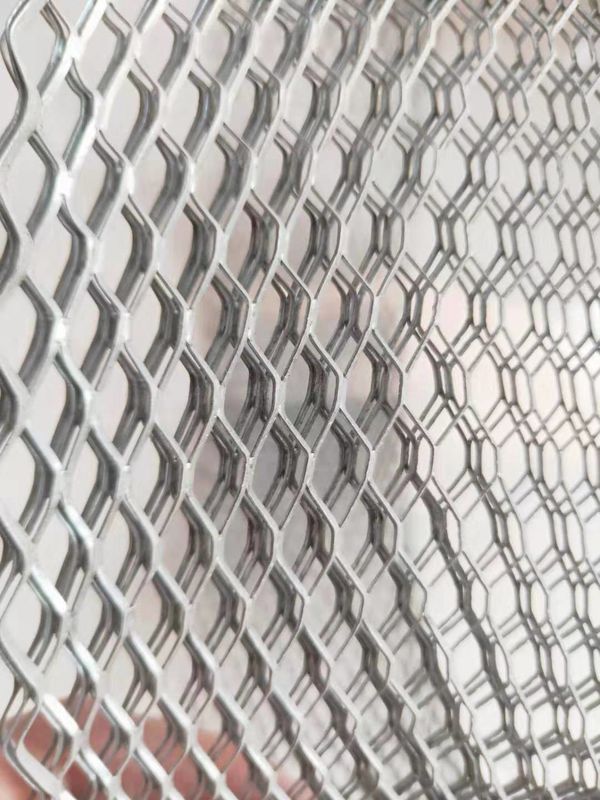

Galvanized Brickwork Reinforcement Mesh Coil Mesh Expand Mesh

Galvanized Brickwork Reinforcement Mesh  Coil Mesh  Expand Mesh
Galvanized Brickwork Reinforcement Mesh  Coil Mesh  Expand Mesh

Large Image :  Galvanized Brickwork Reinforcement Mesh Coil Mesh Expand Mesh

Product Details:
Place of Origin: HEBEI CHINA
Brand Name: JIAFU
Certification: IS9001
Model Number: JIAFU480
Payment & Shipping Terms:
Minimum Order Quantity: 500rolls
Packaging Details: CARTON OR PALLET
Delivery Time: 15-20
Supply Ability: 5000M2/DAY
Detailed Product Description
MATERIAL: Galvanized Steel Name: Brick Wall Mesh
Thickness: 0.40mm Length: 10-100m
Width: 10cm-20cm Weight: 480g/m2
High Light:

masonry reinforcement mesh

,

brick reinforcing coil







Specification:



Hole Type: Diamond

Hole Size: 12*25mm

width: 10cm, 15cm, 20cm

Length: 10m-100m

packing:by carton or Pallet

Hole Type Hole Size Width Length Packing
Diamond 16*28mm 10cm,15cm,20cm,30cm 10-100m by carton or pallet





How to Install  Brickwork Reinforcement Mesh:

The coil mesh is laid in strips between brick or block courses leaving approximately 25mm clearance from the faces of the work. Where coil mesh joins are required, ensure they overlap by at least 75mm.

The reinforcement is then simply embedded in the mortar for the next course.

In most instances, application every third course, for the full length of the wall, will be sufficient.

To reinforce brickwork at an opening, e.g. window or door, mesh should be installed to overlap part of the opening, and part of the solid wall.

Thinking of the width of the opening, lay the mesh approximately a quarter of the way across the opening. The mesh should lie the same distance again, across the solid wall.

Above windows or doors, install Catnic mesh for 2-3 courses, starting from the course above the lintel
