SS304 10cm Width Brick Wall Mesh Galvanized Anti - Cracking 480g 0.35MM Thickness

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

SS304 10cm Width Brick Wall Mesh Galvanized Anti - Cracking 480g 0.35MM Thickness

SS304 10cm Width Brick Wall Mesh Galvanized Anti - Cracking 480g 0.35MM Thickness
SS304 10cm Width Brick Wall Mesh Galvanized Anti - Cracking 480g 0.35MM Thickness

Large Image :  SS304 10cm Width Brick Wall Mesh Galvanized Anti - Cracking 480g 0.35MM Thickness

Product Details:
Place of Origin: ANPING HEBEI CHINA
Brand Name: JIAFU
Model Number: JFBRS480
Payment & Shipping Terms:
Minimum Order Quantity: 500m2
Packaging Details: CARTON OR PALLET
Delivery Time: 15-20
Supply Ability: 5000M2/DAY
Detailed Product Description
MATERIAL: Galvanized Plate Name: Brickwork Reinforcement Mesh
Thickness: 0.35mm Length: 10-100m
Width: 10cm-20cm Weight: 480g/m2
High Light:

stucco wire mesh

,

brick wire mesh

SS304 10cm Width Galvanized Anti - Cracking Brick Wall Mesh 480g 0.35MM Thickness

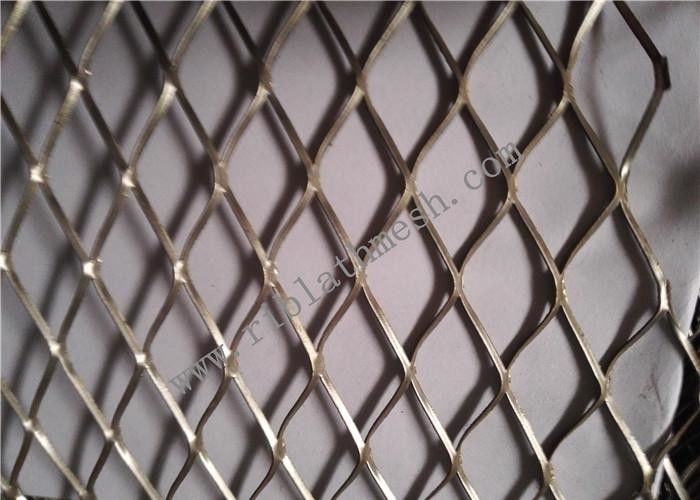

Brick wall mesh is non- welding expanded mesh .It's is made of ss304 or galvanized steel plate.This use primarily as an anti-cracking reinforcement in the construction of brick and block masonry.Brick Wall Mesh is available in a variety of widths to suit most wall constructions and is supplied coiled for ease of handling. Additional applications include strengthening cornices, low walls and balconies over door and window openings.





Specification:



Hole Type: Diamond

Hole Size: 12*25mm like the photo

Width: 7.5cm,10cm, 15cm, 20cm

Length: 10m-100m



Hole Size Width Length weight
12*25mm 7.5cm-20cm 10-100m 480g/m2







How to Install  Brick Wall  Mesh:

The Brick Wall Mesh is laid in strips between brick or block courses leaving approximately 25mm clearance from the faces of the work. Where coil mesh joins are required, ensure they overlap by at least 75mm.

The reinforcement is then simply embedded in the mortar for the next course.

In most instances, application every third course, for the full length of the wall, will be sufficient.

To reinforce brickwork at an opening, e.g. window or door, mesh should be installed to overlap part of the opening, and part of the solid wall.

Thinking of the width of the opening, lay the mesh approximately a quarter of the way across the opening. The mesh should lie the same distance again, across the solid wall.

Above windows or doors, install Catnic mesh for 2-3 courses, starting from the course above the lintel .
