Product Details:
Payment & Shipping Terms:
|
| Width: | 610mm | Hole: | 10*20mm |
|---|---|---|---|
| Length: | 1-3m | Rib Height: | 5mm |
| Material: | Galvaninzed Plate | Name: | Rib Lath Mesh |
| High Light: | 0.8kgs/piece rib lath mesh,2m length rib lath mesh,building rib lath mesh |
||

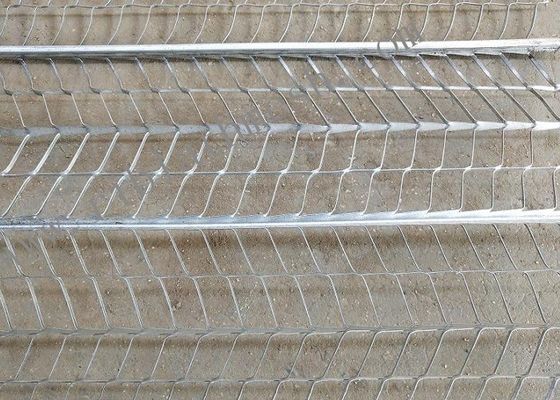

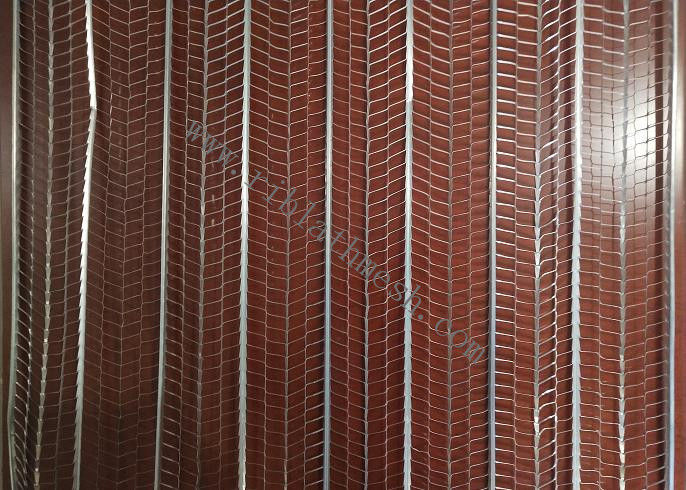

Rib Lath Mesh is made of hot dipped galvanized plate .The width is 610mm.We can produce the length less than 4m. The popular Length in the world market is 2.1m-2.5m ,Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface. Rib Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.
| TYPE | THICKNESS(MM) | SW*LW(mm) | Tendons High(mm) | Reinforcement Distance(mm) | Width(MM) |
| JF0508 | 0.3mm | 12.5*17mm | 5 | 150 | 610 |
packing: 750pcs,1000pc/pallet popular length: 2.1m,2.2m,2.4m,2.5m,3m
