JF0704 Expanded Industrial Building Formwork High Rib Lath 0.25mm Thickness

Large Image : JF0704 Expanded Industrial Building Formwork High Rib Lath 0.25mm Thickness

Product Details:

Place of Origin:	ANPING HEBEI CHINA
Brand Name:	JIAFU
Model Number:	JF0704

Payment & Shipping Terms:

Minimum Order Quantity:	500PCS
Packaging Details:	PALLET
Delivery Time:	15-20DAYS
Supply Ability:	1500PCS/DAY

Contact Now

Detailed Product Description

NAME:	RIB LATH	USED:	In Construction
Width:	600mm	Length:	2-3m
Hole:	7*20mm	Material:	Galvanized Plate
Highlight:	0.25mm Thickness High Rib Lath , Formwork High Rib Lath , 7*20mm Hole Metal Rib Lath

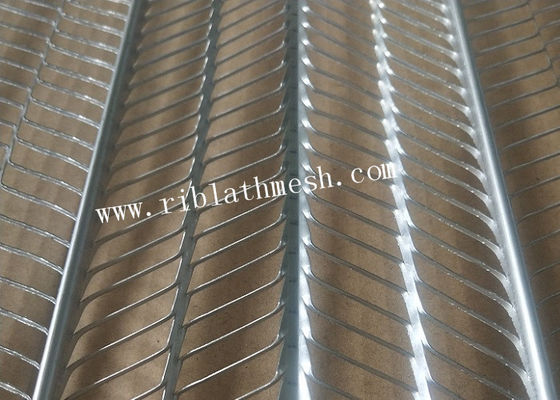

JF0704 Expanded Rib Lath Mesh For Industrial Building 0.25mm Thickness

Rib Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.

JF0704 Rib Lath the hole size is :7*20mm.This mesh offers special extension due to its special opening and the uniform V type reinforced structure in the surface.This type have 7 ribs.

Raw Material:

Hot dipped steel plate

Specification:

We could produce the thickness: 0.2-0.4mm. The very popular thickness is: 0.3mm

TYPE	THICKNESS(MM)	SW*LW(mm)	Tendons High(mm)	Reinforcement Distance(mm)	Width(MM)
JF0704	0.20-0.40	7×20	5	100	600
