15cm Width 15m Length Anti Cracking Brick Wall Wire Mesh Reinforcement In Construction

15cm Width Brick Wall Mesh 15m Length Anti-Cracking Reinforcement In The Construction

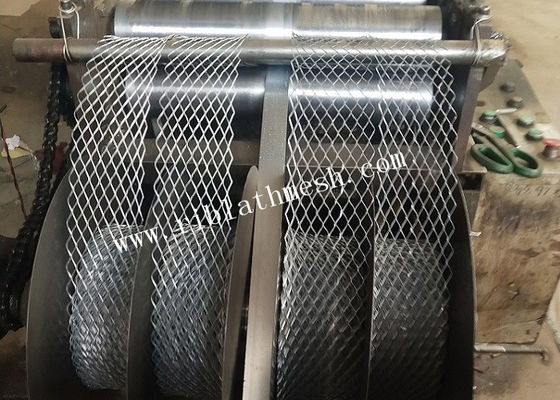

Brick Wall Mesh for use primarily as an anti-cracking reinforcement in the construction of brick and block masonry. Coil mesh is available in a variety of widths to suit most wall constructions and is supplied coiled for ease of handling. Additional applications include strengthening cornices, low walls and balconies over door and window openings.This goods make of the hot dipped plate.Not easy to rust.

Hole Type: Diamond

Hole Size: 16*28mm like the photo

width: 10cm,15cm,20cm,30cm

Length: 10m-100m

Packing: by carton or pallet

How to Install  Brickwork Reinforcement Mesh?

The coil mesh is laid in strips between brick or block courses leaving approximately 25mm clearance from the faces of the work. Where coil mesh joins are required, ensure they overlap by at least 75mm.

The reinforcement is then simply embedded in the mortar for the next course.

In most instances, application every third course, for the full length of the wall, will be sufficient.

To reinforce brickwork at an opening, e.g. window or door, mesh should be installed to overlap part of the opening, and part of the solid wall.

Thinking of the width of the opening, lay the mesh approximately a quarter of the way across the opening. The mesh should lie the same distance again, across the solid wall.

Above windows or doors, install Catnic mesh for 2-3 courses, starting from the course above the lintel as shown below
