| Material: | GALVANIZE PLATE | Width: | 0.45M |
|---|---|---|---|
| Length: | 2-3M | Rib Height: | 14MM |
| Thickness: | 0.18-0.57mm | Color: | Silver |
| High Light: | 0.18mm thickness hy rib lath,2.2m length hy rib lath,building high rib formwork |
||

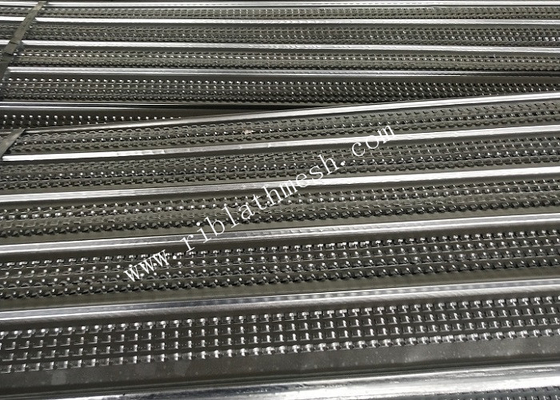

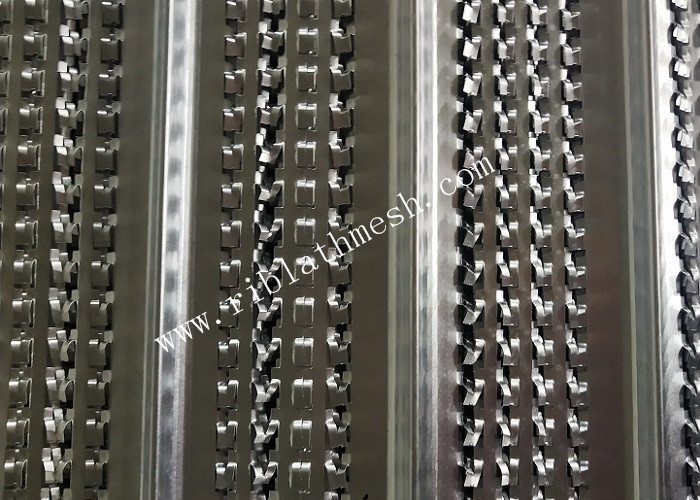

0.18mm Thickness High Ribbed Formwork For Building 2.2m Length
High Ribbed Formwork is manufactured by professional machines with out welds.Its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security.We can produce the thickness from 0.18mm-0.57mm.
Material:
Hot-dipped galvanized steel sheets.
Used in:
Tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
Specification:
| model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
|
018 |
0.18 |
1.40 |
450 |
2200 | 14 | 90 |
| 021 | 0.21 | 1.70 | 450 | 2200 | 14-20 | 90 |
| 023 | 0.23 | 1.90 | 450 | 2200 | 14-20 | 90 |
| 030 | 0.30 | 2.48 | 450 | 2200 | 14-20 | 90 |
| 035 | 0.35 | 2.90 | 450 | 2200 | 14-20 | 90 |
| 040 | 0.40 | 3.30 | 450 | 2200 | 14-20 | 90 |
| 045 | 0.45 | 3.70 | 450 | 2200 | 14-20 | 90 |
| 050 | 0.50 | 4.10 | 450 | 2200 | 14-20 | 90 |
