| Name: | High Ribbed Formwork | LENGTH: | 1-4M |
|---|---|---|---|
| RIB HEIGHT: | 19MM | HOLE: | 5*10MM |
| MATERIAL: | Ss316L | Width: | 450mm |
| High Light: | ss316l high ribbed formwork,0.40mm thickness high ribbed formwork,ss high rib formwork |
||

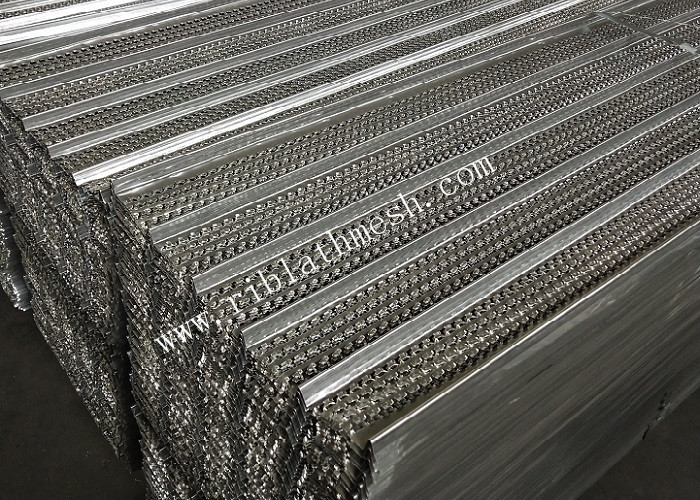

High Ribbed Formwork has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
Feature:
Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath.
Raw Material:
ss316L or Galvanized plate
Specification:
| Model |
Thickness (mm) |
Weight (kg) | Width (mm) | Length (mm) | Rib Height(mm) |
Rib Distance (mm) |
| 021 | 0.21 | 1.70 | 450 | 2200 | 14-20 | 90 |
| 023 | 0.23 | 1.90 | 450 | 2200 | 14-20 | 90 |
| 030 | 0.30 | 2.48 | 450 | 2200 | 14-20 | 90 |
| 035 | 0.35 | 2.90 | 450 | 2200 | 14-20 | 90 |
| 040 | 0.40 | 3.30 | 450 | 2200 | 14-20 | 90 |
| 045 | 0.45 | 3.70 | 450 | 2200 | 14-20 | 90 |
| 050 | 0.50 | 4.10 | 450 | 2200 | 14-20 | 90 |
