ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| NAME: | Rib Lath | USED: | In Construction |
|---|---|---|---|
| Width: | 600mm | Length: | 2-3m |
| Hole: | 7*20mm | Material: | Galvanized Plate |
| High Light: | galvanized expanded metal rib lath,2.5m length expanded metal rib lath,5mm rib height galvanised rib lath |
||

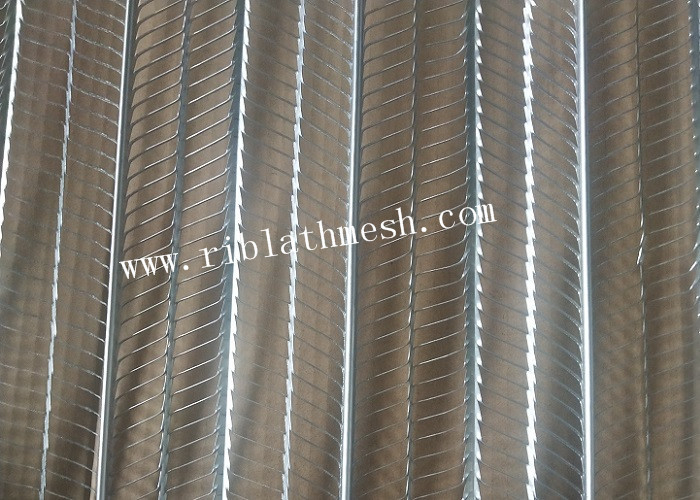

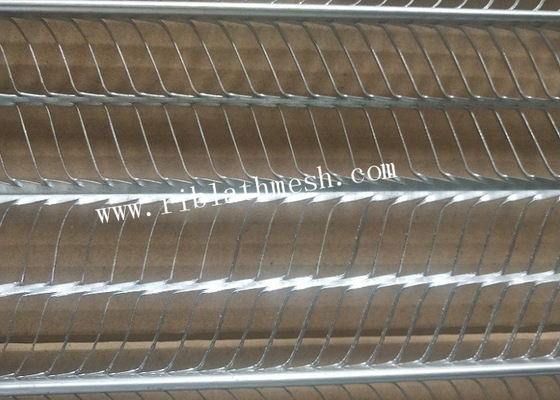

Metal Rib Lath (Rib Expanded Metal Lath) is a kind of expanded metal. This type the rib height is 5mm,Hole size is 7*20mm.Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface. Rib Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.
Raw Material:
Galvanized plate
Specification:
We could produce the thickness: 0.2-0.4mm. The very popular thickness is: 0.3mm
| TYPE | THICKNESS(MM) | SW*LW(mm) | Tendons High(mm) | Reinforcement Distance(mm) | Width(MM) |
| JF0704 | 0.25-0.40 | 7×20 | 5 | 100 | 600 |
Packing:
700-1000pcs/metal pallet.
