2.2m Length Galvanized Metal Rib Lath 600mm Width For Building

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

2.2m Length Galvanized Metal Rib Lath 600mm Width For Building

2.2m Length Galvanized Metal Rib Lath 600mm Width For Building
2.2m Length Galvanized Metal Rib Lath 600mm Width For Building

Large Image :  2.2m Length Galvanized Metal Rib Lath 600mm Width For Building

Product Details:
Place of Origin: Anping,Hebei,China
Brand Name: JiaFu
Model Number: JF0708
Payment & Shipping Terms:
Minimum Order Quantity: 500
Packaging Details: 700pcs/pallet
Supply Ability: 1000pcs/day
Detailed Product Description
Name: Expanded Metal Lath Width: 600mm
Length: 2-3m Matarial: Galvanized Sheet
Packing: 700pcs/pallet Hole: 8*12mm
High Light:

600mm width metal rib lath

,

2.2m length metal rib lath

,

building galvanised rib lath



JF0708 2.2m Length Galvanized Metal Rib Lath 600mm Width For Building

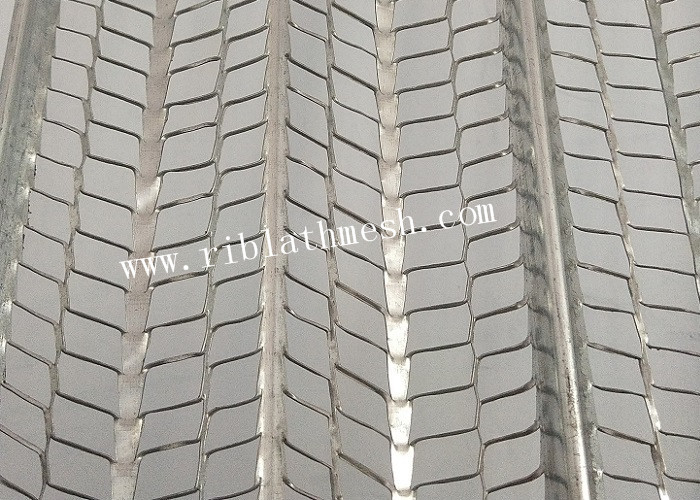

Metal Rib lath is produced by the professional machine .It is a completely non-expansion of the network connection of the steel, the material from the galvanized plate,because of its special mesh and nets uniform surface of the V-shaped rib structure, making flat screen its strength characteristics. Widely used in suspended ceiling, light steel spacer grout paint.JF0708 is one type of expanded metal lath.The hole size is 8*12mm.This type is very popular in the world market.
Made of hot galvanized steel punching expansion is made with a V-shaped ribs to increase the tensile strength. Longitudinal stiffeners make large depth of coating applicator has a uniform depth. Widely used in plaster walls and suspended ceilings, plastering construction substrates.

Usage:


1. High rise residential light compartment, firewall;
2. Constructed compartment door, partition;
3. Floor slabs, partition walls
4. Within a permanent workshop walls, fences;
5. Double-walled basement moisture
6. Combining seam construction work;
7. Tunnels, sewers, wall project;
8. Laval Foundation, docks, retaining walls;
9. Flat and arched floor
10. Nuclear power plants, storage tanks and other circular shape structure;
11. Landscaping sculptures and other special projects;
12. Slope protection, embankments and other projects.



Regular size:


Mesh hole : 8*12mm
The sheet's thickness: 0.3mm
Rib height: 8mm
Rib distance:100mm
Width:600mm
Length:2-3m

Width length Hole Thickness Rib Height Rib Distance
600mm 2-3m 8*12mm 0.3mm 8mm 100mm






Advantages:

1, Filling self-compacting, vibration-free;
2, Pouring Free dismantle Free clean-up;
3, no roughened surface to provide an effective combination;
4, small size, light weight, easy handling;
5, easy to cut, easy to make steel throughout, easy to tie nail;
6 to prevent violent mold, keeping the site clean;
7, and easy drainage mesh, and reinforcing structure;
8, to prevent the concrete surface cracks;
9, labor, material saving, high efficiency;
10, saving template support material.
