ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| NAME: | RIB LATH | USED: | In Construction |
|---|---|---|---|
| Width: | 600mm | Length: | 2-3m |
| Hole: | 7*20mm | Material: | Galvanized Plate |
| High Light: | 0.6m width expanded metal lath,building expanded metal lath galvanized,industrial building metal lath galvanized |
||

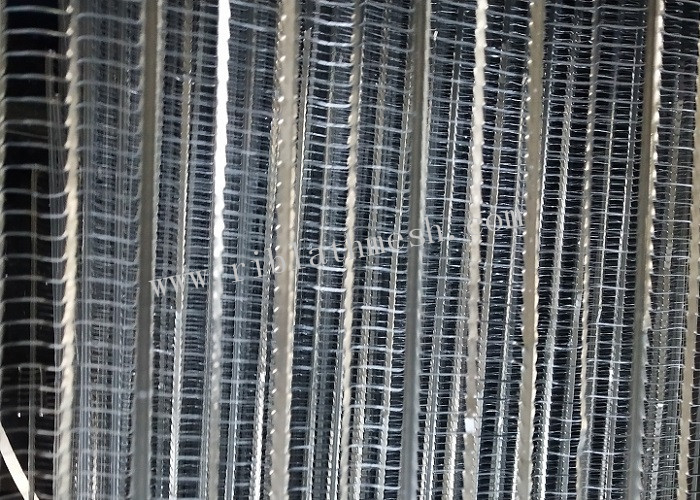

JF0704 is one type of the Expanded Metal Lath.The hole size is :7*20mm.This mesh offers special extension due to its special opening and the uniform V type reinforced structure in the surface.This type have 7 ribs.
Material:
Hot dipped galvanized plate
Used:
Rib Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.
Specification:
We could produce the thickness: 0.2-0.4mm. The very popular thickness is: 0.3mm
| TYPE | THICKNESS(MM) | SW*LW(mm) | Tendons High(mm) | Reinforcement Distance(mm) | Width(MM) |
| JF0704 | 0.20-0.40 | 7×20 | 5 | 100 | 600 |
