0.3mm Thickness V Type Galvanised Metal Mesh Lath 5*11mm Hole

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

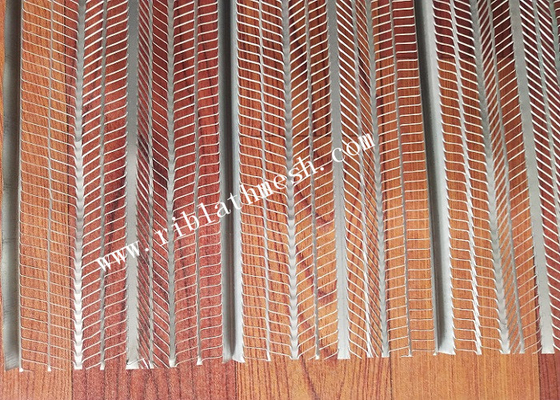

0.3mm Thickness V Type Galvanised Metal Mesh Lath 5*11mm Hole

0.3mm Thickness V Type Galvanised Metal Mesh Lath 5*11mm Hole
0.3mm Thickness V Type Galvanised Metal Mesh Lath 5*11mm Hole

Large Image :  0.3mm Thickness V Type Galvanised Metal Mesh Lath 5*11mm Hole

Product Details:
Place of Origin: ANPING HEBEI CHINA
Brand Name: JIAFU
Model Number: JF1008
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Packaging Details: by pallet
Delivery Time: 15-20days
Supply Ability: 5 containers /month
Detailed Product Description
Width: 500-900mm Hole: 5*11mm
Length: 1-3m Rib Height: 9mm
Material: Galvaninzed Plate Rib Distance: 100mm
High Light:

0.3mm thickness galvanised metal mesh lath

,

v type galvanised metal mesh lath

,

5*11mm hole expanded metal lath

0.3mm Thickness V Type Galvanized Expanded Metal Lath 5*11mm Hole



Expanded Metal Lath the max width we can produce is 900mm.The hole is smaller than other type. It Can  adapted to your different needs.Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface. Rib Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.







Specification:



Width:500mm,600mm,700mm,800mm,900mm

Thickness:0.3-0.4mm

Hole size:5*11mm

Tendons Height:9mm

Length:1-3m



TYPE THICKNESS(MM) SW*LW(mm) Tendons Height(mm) Reinforcement Distance(mm) Width(MM)
JF1008 0.3mm-0.4mm 5*11 9 100 500-900mm







Application:

Widely used as a background for plaster, render, stucco application in construction of suspended ceilings partition.





Feature:

Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface.
