| MATERIAL: | HOT GALVANIZED PLATE | WIDTH: | 0.5-0.9M |
|---|---|---|---|
| THICKNESS: | 0.2-0.4MM | LENGTH: | 2-3M |
| HOLE: | 10*20mm,7*20mm ,7*15mm,8*12mm 4.5*10MM | Rib Height: | 5mm.8mm,9mm |
| High Light: | galvanized metal lath,expanded metal rib lath |
||

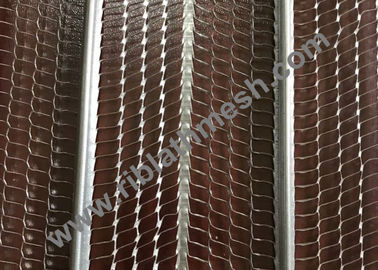

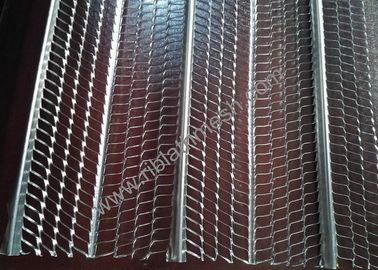

Plaster Background Galvanized Expanded Metal Lath 0.2-0.4MM THICKNESS 2-3M LENGTH
EXPANDED METAL LATH is a kind of expanded metal from galvanized steel. Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface. Rib Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.
Specification:
| YPE | Thickness(MM) | SW*LW(mm) | RIB Height(mm) | Reinforcement Distance(mm) | Width(MM) |
| XT0508 | 0.20-0.40 | 10×20 | 5 | 150 | 610 |
| XT0704 | 0.20-0.40 | 7×20 | 5 | 100 | 600 |
| XT0706 | 0.20-0.40 | 7×15 | 8 | 100 | 600 |
| XT0708 | 0.20-0.40 | 8×12 | 8 | 100 | 600 |
| XT1008 | 0.20-0.40 | 4.5×10 | 9 | 100 | 500-900 |
:
EXPANDED METAL LATH Features Compared with Other Metal Laths:
Rib lath is produced in hot dipped galvanized steel.
