| Material: | Hot-dipped Galvanized Steel Sheet | Width: | 450mm |
|---|---|---|---|
| Length: | 2200mm | Thickness: | 0.30mm |
| High Light: | Hot Dipped Galvanized High Ribbed Formwork,ISO High Ribbed Formwork,High Ribbed Formwork Hot Dipped Galvanized |
||

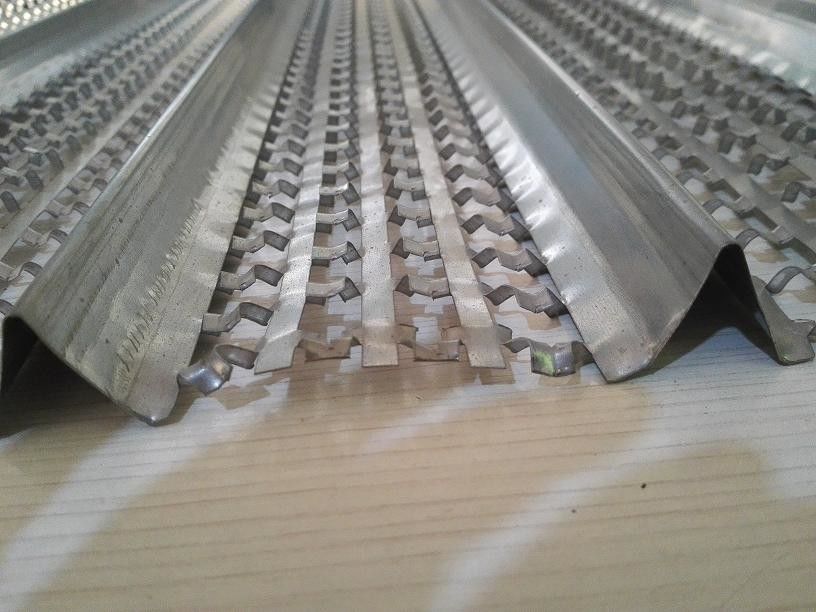

High ribbed formworkis manufactured from hot-dipped galvanised steel sheets.
Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality construction security and widely used in tunnel bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, ship-yards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free formwork.
| Unbeatable quality hy ribbed mesh made in China | |||||
| Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance (mm) |
| 0.21 | 1.70 | 450 | 2200 | 14-20 | 90 |
| 0.23 | 1.90 | 450 | 2200 | 14-20 | 90 |
| 0.30 | 2.48 | 450 | 2200 | 14-20 | 90 |
| 0.35 | 2.90 | 450 | 2200 | 14-20 | 90 |
| 0.40 | 3.30 | 450 | 2200 | 14-20 | 90 |
| 0.45 | 3.70 | 450 | 2200 | 14-20 | 90 |
| 0.50 | 4.10 | 450 | 2200 | 14-20 | 90 |
