| MATERIAL: | GALVANIZED STEEL | WIDTH: | 445MM |
|---|---|---|---|
| LENGTH: | 2200MM | RRIB HEIGHT: | 14MM-21MM |
| THICKNESS: | 0.23MM | RIB DISTANCE: | 90MM |
| High Light: | hi rib lath,high rib sheet |
||

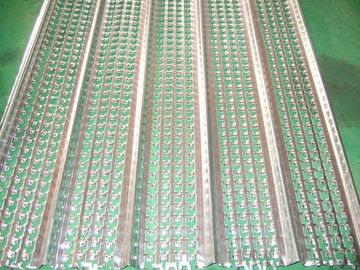

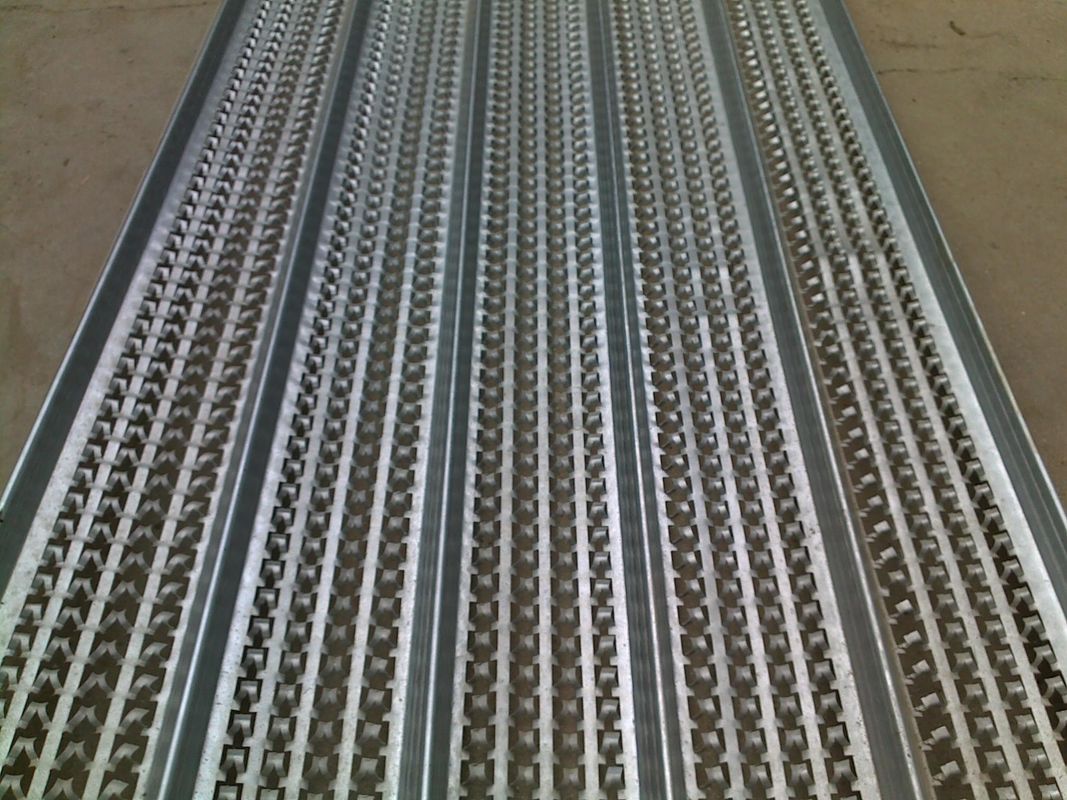

HIGH RIBBED FORMWORK , Hy rib , THICKNESS 0.23MM , WIDTH 445MM
High Ribbed Formwork is manufactured from hot-dipped galvanized steel sheets. Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath.
High Ribbed Formwork has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
HIGH RIBBED FORMWORK
| Model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
| 021 | 0.21 | 1.70 | 445 | 2200 | 14-21 | 90 |
| 023 | 0.23 | 1.90 | 445 | 2200 | 14-21 | 90 |
| 030 | 0.30 | 2.48 | 445 | 2200 | 14-21 | 90 |
| 035 | 0.35 | 2.90 | 445 | 2200 | 14-21 | 90 |
| 040 | 0.40 | 3.30 | 445 | 2200 | 14-21 | 90 |
| 045 | 0.45 | 3.70 | 445 | 2200 | 14-21 | 90 |
| 050 | 0.50 | 4.10 | 445 | 2200 | 14-21 | 90 |
