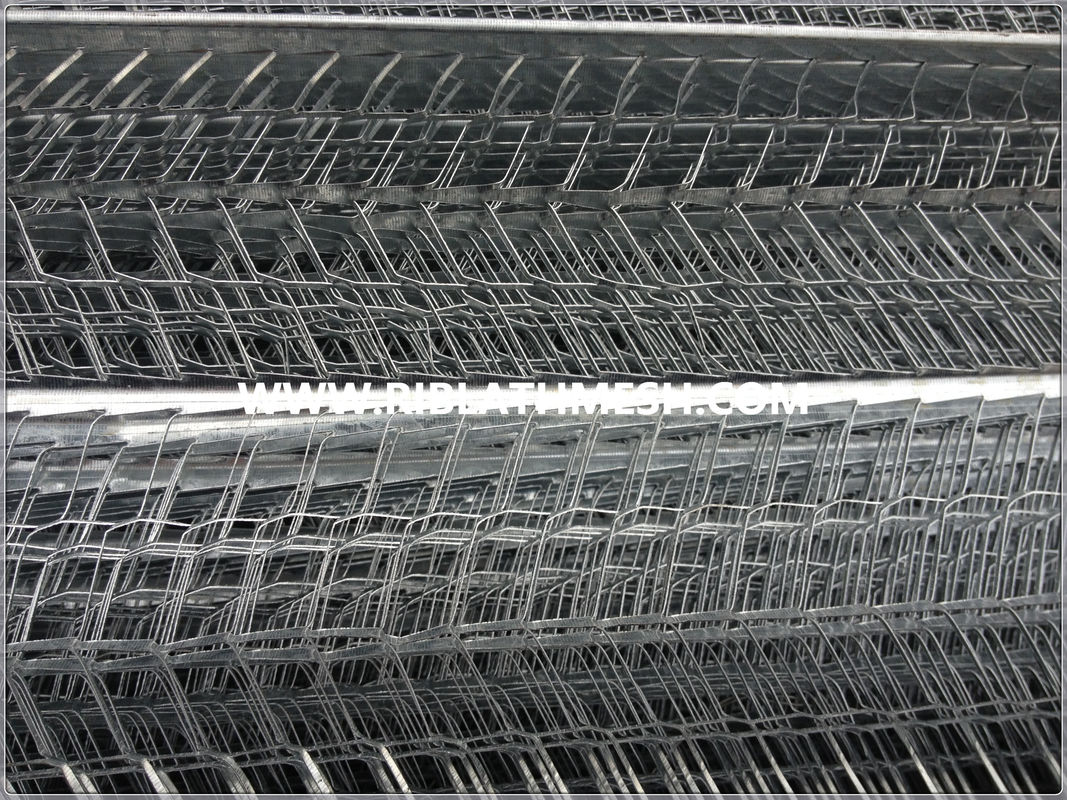

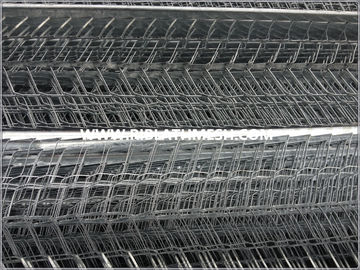

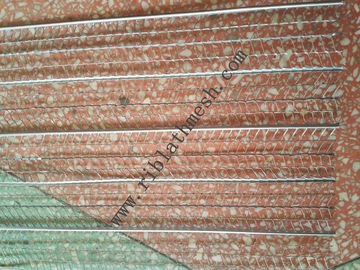

60cm Width Expanded Metal Lath , High Tensile Metal Mesh Lath With V Ribs

Large Image : 60cm Width Expanded Metal Lath , High Tensile Metal Mesh Lath With V Ribs

Product Details:

Place of Origin:	HEBEI CHINA
Brand Name:	XINGTAI
Model Number:	03525

Payment & Shipping Terms:

Minimum Order Quantity:	500 PIECES
Packaging Details:	500 PIECES PER PALLET
Delivery Time:	15-20 DAYS
Supply Ability:	50,000 PIECES PER MONTH

Contact Now

Detailed Product Description

RAW MATERIAL:	GALVANIZED STEEL	THICKNESS:	0.25MM, 0.30MM, 0.35MM, 0.40MM
WIDTH:	600MM	LENGTH:	2500MM
RIB DISTANCE:	100MM	RIB HEIGHT:	4MM, 8MM, 10MM
High Light:	galvanized metal lath , expanded metal rib lath

Expanded Metal , Rib Lath Mesh, WIDTH 600MM, RIB DISTANCE 100MM, RIB HEIGHT 4MM, 8MM, 10MM LENGTH 2500MM

We focuses on production and development of rib lath and various metal lathing products to meet the plaster and reinforcement requirements in construction

Rib Lath , Ribbed Lath is a versatile metal lath stiffened by the longitudinal ribs. It has V ribs and greater tensile strength offering excellent plaster base and reinforcement for all types of walls, ceilings and fireproofing of steel beam, and columns

	Thickness	Rib distance	Rib height	Width	Length	Kg/m²
RIB LATH	0.25MM	100MM	4MM, 8MM	600MM	2500mm	0.88
RIB LATH	0.30MM	100MM	8MM	600MM	2500mm	1.17
RIB LATH	0.35MM	100MM	8MM	600MM	2500mm	1.36
RIB LATH	0.40MM	100MM	8MM	600MM	2500mm	1.56
