| MATERIAL: | GALVANIZED STEEL | WIDTH: | 450MM |
|---|---|---|---|
| RRIB HEIGHT: | 14MM-21MM | THICKNESS: | 0.23MM - 0.55MM |
| RIB DISTANCE: | 90MM | ||
| High Light: | high rib mesh,high rib sheet |
||

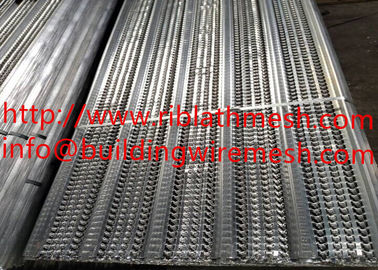

High ribbed formwork can be called FAST-RIBBED FORMWORK. It is a new type of environmentally friendly construction materials.
Because of its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath.
High Ribbed Formwork has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
HIGH RIBBED FORMWORK
| Model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
| 021 | 0.21 | 1.70 | 445 | 2200 | 14-21 | 90 |
| 023 | 0.23 | 1.90 | 445 | 2200 | 14-21 | 90 |
| 030 | 0.30 | 2.48 | 445 | 2200 | 14-21 | 90 |
| 035 | 0.35 | 2.90 | 445 | 2200 | 14-21 | 90 |
| 040 | 0.40 | 3.30 | 445 | 2200 | 14-21 | 90 |
| 045 | 0.45 | 3.70 | 445 | 2200 | 14-21 | 90 |
| 050 | 0.50 | 4.10 | 445 | 2200 | 14-21 | 90 |
