Professional Custom High Ribbed Formwork Wall Construction Height 21mm

Large Image : Professional Custom High Ribbed Formwork Wall Construction Height 21mm

Product Details:

Place of Origin:	HEBEI CHINA
Brand Name:	XINGTAI
Model Number:	0045

Payment & Shipping Terms:

Minimum Order Quantity:	500 PIECES
Packaging Details:	500PIECES PER PALLET
Delivery Time:	15 TO 20 DAYS
Supply Ability:	50,000 PIECES PER MONTH

Contact Now

Detailed Product Description

MATERIAL:	GALVANIZED STEEL	WIDTH:	450MM
RIB HEIGHT:	21MM	THICKNESS:	0.23MM - 0.55MM
RIB DISTANCE:	89MM
High Light:	high rib mesh , high rib sheet

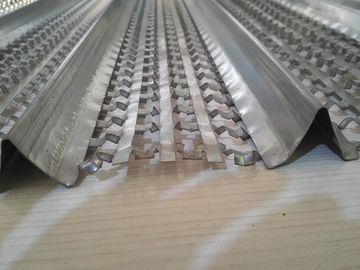

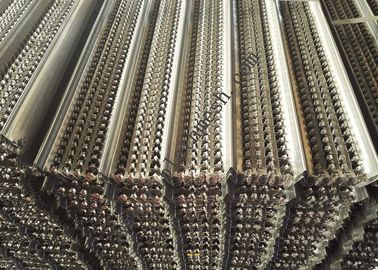

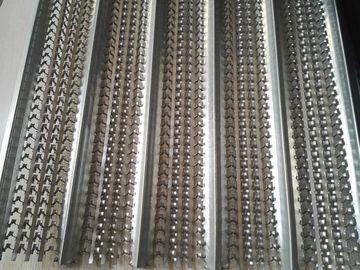

High ribbed formwork is the stable expanded metal rib for perfect construction joints in reinforced concrete constructions.

High ribbed formwork enables the perfect joint between the concreted sections without needing to further process the construction joint.

High ribbed formwork enables a high concreting speed and the visual monitoring of the concreting process. The areas of application in concrete construction: As permanent formwork for construction joints.

HIGH RIBBED FORMWORK

Model	Thickness (mm)	Weight (kg)	Width (mm)	Length (mm)	Rib Height (mm)	Rib Distance(mm)
021	0.21	1.70	445	2200	14-21	89
023	0.23	1.90	445	2200	14-21	89
030	0.30	2.48	445	2200	14-21	89
035	0.35	2.90	445	2200	14-21	89
040	0.40	3.30	445	2200	14-21	89
045	0.45	3.70	445	2200	14-21	89
050	0.50	4.10	445	2200	14-21	89
