Galvanized High Ribbed Formwork for building 14-20MM RIB HEIGHT 0.18MM-0.57MM

Large Image : Galvanized High Ribbed Formwork for building 14-20MM RIB HEIGHT 0.18MM-0.57MM

Product Details:

Place of Origin:	ANPING HEBEI CHINA
Brand Name:	Xingtai
Model Number:	XTHR001

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Packaging Details:	500 or 1000pcs/pallet
Delivery Time:	15-20days
Supply Ability:	5000pcs/day

Contact Now

Detailed Product Description

MATERIAL:	GALVANIZE PLATE	WIDTH:	0.45M
LENGTH:	2-3M	Rib Height:	14-20mm
Thickness:	0.18-0.57mm	Color:	Silver
High Light:	high rib mesh , high rib sheet

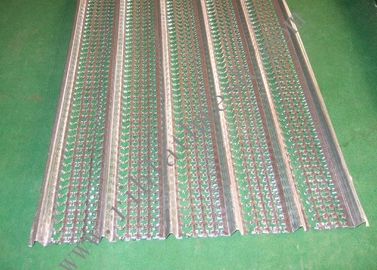

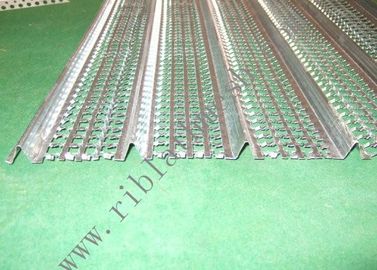

Galvanized High Ribbed Formwork for building 14-20MM RIB HEIGHT 0.18MM-0.57MM

HIGH RIBBED FORMWORK is manufactured from hot-dipped galvanized steel sheets. Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.

Material:

Hot-dipped galvanized steel sheets

Specification:

model	Thickness (mm)	Weight (kg)	Width (mm)	Length (mm)	Rib Height (mm)	Rib Distance(mm)
021	0.21	1.70	450	2200	14-20	90
023	0.23	1.90	450	2200	14-20	90
030	0.30	2.48	450	2200	14-20	90
035	0.35	2.90	450	2200	14-20	90
040	0.40	3.30	450	2200	14-20	90
045	0.45	3.70	450	2200	14-20	90
050	0.50	4.10	450	2200	14-20	90

Galvanized High Ribbed Formwork for building 14-20MM RIB HEIGHT 0.18MM-0.57MM 0 15MM RIB HEIGHT
20MM RIB HEIGHT

How to Install High Ribbed Formwork

Feature:
Because its meshes and U patterns, it has better anti-stress capabilit and forming flesbility than normal metal lath.
