Name: | Galvanized Rib Lath Mesh | Width: | 600mm |
---|---|---|---|
Length: | 2-3m | Matarial: | Galvanized Sheet |
Packing: | 700pcs/pallet | Hole: | 8*12mm |
High Light: | stainless steel render lath,galvanized lath mesh |

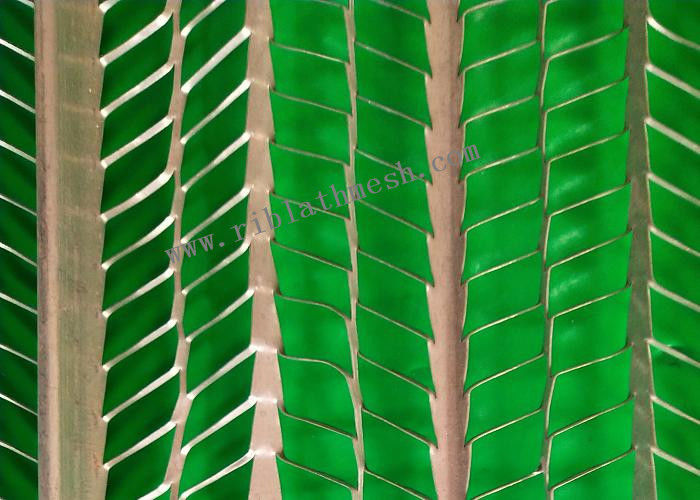

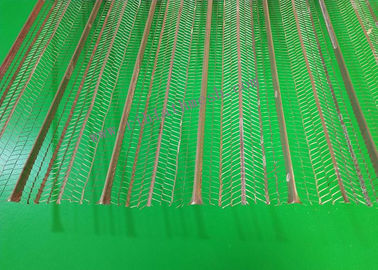

600mm Width Metal Rib Lath Mesh JF0708 2.4m Length 0.3mm Thickness
Rib lath is drawn into the strip through professional machine cut expansion.This is made of the galvanized plate.
it is a completely non-expansion of the network connection of the steel, the material from the pre-galvanized steel or 304 stainless steel, because of its special mesh and nets uniform surface of the V-shaped rib structure, making flat screen its strength characteristics. Widely used in suspended ceiling, light steel spacer grout paint.
Made of hot galvanized steel punching expansion is made with a V-shaped ribs to increase the tensile strength. Longitudinal stiffeners make large depth of coating applicator has a uniform depth. Widely used in plaster walls and suspended ceilings, plastering construction substrates.
Usage:
1. High rise residential light compartment, firewall;
2. Constructed compartment door, partition;
3. Floor slabs, partition walls
4. Within a permanent workshop walls, fences;
5. Double-walled basement moisture
6. Combining seam construction work;
7. Tunnels, sewers, wall project;
8. Laval Foundation, docks, retaining walls;
9. Flat and arched floor
10. Nuclear power plants, storage tanks and other circular shape structure;
11. Landscaping sculptures and other special projects;
12. Slope protection, embankments and other projects.
Regular size:
Mesh hole : 8*12mm
The sheet's thickness: 0.3mm
Rib height: 8mm
Rib distance:100mm
Width:600mm
Length:2-3m
Width | length | Hole | Thickness | Rib Height | Rib Distance |
600mm | 2-3m | 8*12mm | 0.3mm | 8mm | 100mm |
Advantages:
1, Filling self-compacting, vibration-free;
2, Pouring Free dismantle Free clean-up;
3, no roughened surface to provide an effective combination;
4, small size, light weight, easy handling;
5, easy to cut, easy to make steel throughout, easy to tie nail;
6 to prevent violent mold, keeping the site clean;
7, and easy drainage mesh, and reinforcing structure;
8, to prevent the concrete surface cracks;
9, labor, material saving, high efficiency;
10, saving template support material.
