SIZE:: | LESS THAN 900MM | Hole: | 4.5*10mm |
---|---|---|---|
Thickness: | 0.3-0.4mm | Color: | Silver |
Material: | Galvanized Plate | Packing: | Pallet |
High Light: | galvanized metal lath,expanded metal rib lath |

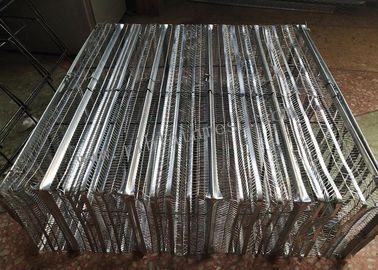

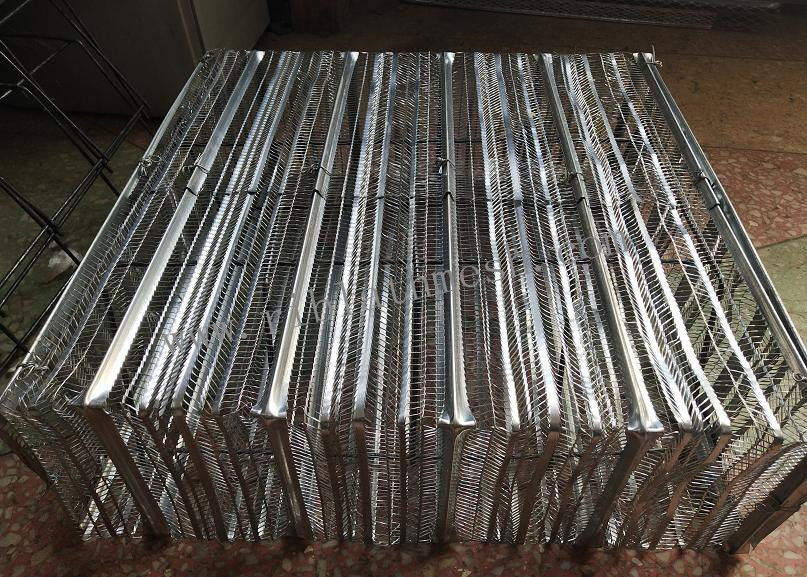

900mm*900mm*300mm Galvanized Expanded Metal Lath Box 0.3-0.4mm Thickness
The steel mesh box is made by stamping, drawing, molding, welding and other processes of high quality galvanized coil plate, with the weight between 8 kg and 20Kg.The new steel mesh cage is made of cast-in-place hollow floor with steel mesh box, with low construction cost, fast construction speed and hollow ratio between 30% and 70%.Can be designed as "work" beam force, can also be designed as "T" beam force.Box specifications more, all kinds of column distance hollow board, have a suitable box size, the bottom plate all cast-in-place, very flat.
The steel cage system can be used to make the reinforced concrete of the floor with a high degree of industrialization and the steel mesh box body has good compatibility. It is free from isolation and pad blocks, convenient for transportation and installation, and can reduce the buoyancy and control the displacement during the construction pouring.
General specification:
Width*Length: 300*500mm, 500*500mm, 600*600mm, 700*700mm, 800*800mm , 900*900mm
Height:100mm-900mm
Thickness:0.3mm, 0.35mm, 0.4mm
Hole size: 4.5*10mm
