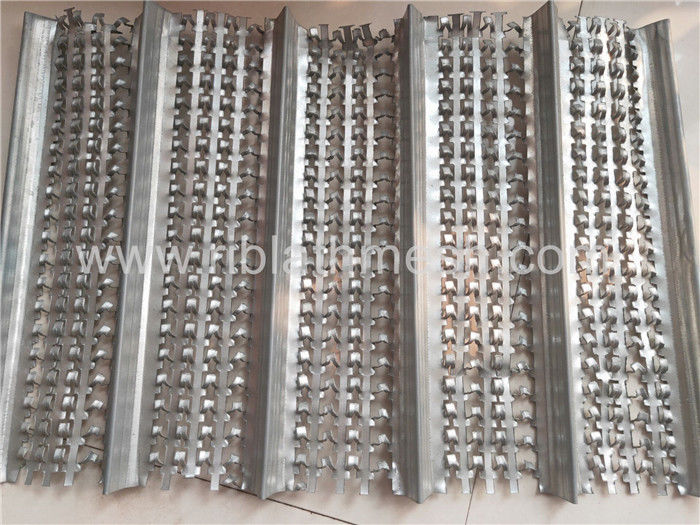

Professional High Rib Lath Mesh , High Rib Construction Joint 2-3M Length

Professional High Rib Lath Mesh , High Rib Construction Joint 2-3M Length
Professional High Rib Lath Mesh , High Rib Construction Joint 2-3M Length

Large Image :  Professional High Rib Lath Mesh , High Rib Construction Joint 2-3M Length

Product Details:
Place of Origin: HEBEI CHINA
Brand Name: JiaFu
Certification: IS9001
Model Number: HRM450
Payment & Shipping Terms:
Minimum Order Quantity: 500
Packaging Details: 500 or 1000pcs/pallet
Delivery Time: 15days
Supply Ability: 5000pcs/day
Contact Now
Detailed Product Description
Name: High Ribbed Forwork Width: 0.45M
Length: 2.2M Rib Height: 18mm
Thickness: 0.4mm Material: Galvanized Plate
Highlight:

high rib mesh

,

high rib sheet

Description



High Ribbed Formwork has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.



Specification:



The follows is the 15mm Height specification for you reference:



Model Thickness (mm) Weight (kg) Width (mm) Length (mm) Rib Height (mm) Rib Distance(mm)
018 0.18 1.35 450 2200 15 90
021 0.21 1.60 450 2200 15 90
023 0.23 1.70 450 2200 15 90
025 0.25 1.90 450 2200 15 90
030 0.30 2.45 450 2200 15 90
035 0.35 2.90 450 2200 15 90
0.40 0.40 3.30 450 2200 15 90
