| Width: | 450MM | Length: | 1-4M |
|---|---|---|---|
| Rib Height: | 15MM | Hole: | 5*10MM |
| Material: | Galvanized Sheet | Rib Distance: | 90mm |
| High Light: | high rib mesh,high rib sheet |
||

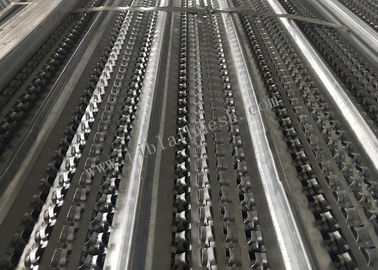

High Ribbed Formwork is made of hot dipped galvanized sheet .We can produce the width:420mm,450mm,Length:1m-3m,Thickness from 0.1mm-0.57mm
| Model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
| 2021 | 0.21 | 1.70 | 450 | 2200 | 19 | 90 |
| 2023 | 0.23 | 1.90 | 450 | 2200 | 19 | 90 |
| 2025 | 0.25 | 2.10 | 450 | 2200 | 19 | 90 |
| 2030 | 0.30 | 2.50 | 450 | 2200 | 19 | 90 |
| 2035 | 0.35 | 2.90 | 450 | 2200 | 19 | 90 |
| 2040 | 0.40 | 3.40 | 450 | 2200 | 19 | 90 |
| 2045 | 0.45 | 3.80 | 450 | 2200 | 19 | 90 |
| 2050 | 0.50 | 4.10 | 450 | 2200 | 19 | 90 |
| 2057 | 0.57 | 4.70 | 450 | 2200 | 19 | 90 |
Features of High Ribbed Formwork
Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
