| NAME: | RIB LATH | USED: | In Construction |
|---|---|---|---|
| Width: | 600mm | Length: | 2-3m |
| Hole: | 7*20mm | Material: | Galvanized Plate |
| High Light: | stainless steel rib lath,galvanized lath mesh |
||

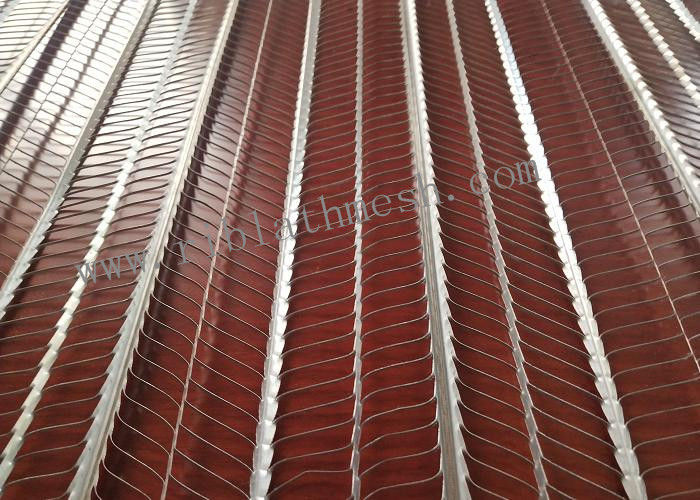

JF0704 is one type of Rib Lath.This type have 7 ribs.There four holes between each of the ribs.Rib Lath is made form the Galvanized Steel Plate.We could produce the length less than 3 meters.This goods is easy to use without welding .It's used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.
Feature:
Rib Lath mesh offers special extension due to its special opening and the uniform V type reinforced structure in the surface.
Specification:
We could produce the thickness: 0.2-0.4mm. The very popular thickness is: 0.3mm
| TYPE | THICKNESS(MM) | SW*LW(mm) | Tendons High(mm) | Reinforcement Distance(mm) | Width(MM) |
| XT0704 | 0.20-0.40 | 7×20 | 5 | 100 | 600 |
