Product Details:
Payment & Shipping Terms:
|
| Name: | High Ribbed Formwork | LENGTH: | 1-4M |
|---|---|---|---|
| RIB HEIGHT: | 15MM 19mm | HOLE: | 5*10MM |
| MATERIAL: | GALVANIZED PLATE | Width: | 450mm |
| High Light: | high rib mesh,high rib sheet |
||

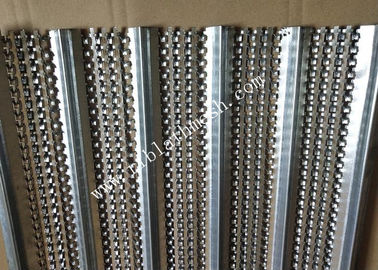

High Ribbed Formwork is very popular in the world market.The width is :0.45mm,Length we can produce from 1m-4m.Hole:5*10mm.Rib Height:15mm and 19mm. The follow is the 15mm goods weight for your reference:
| Model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
| 018 | 0.18 | 1.35 | 450 | 2200 | 15 | 90 |
| 021 | 0.21 | 1.60 | 450 | 2200 | 15 | 90 |
| 023 | 0.23 | 1.70 | 450 | 2200 | 15 | 90 |
| 025 | 0.25 | 1.90 | 450 | 2200 | 15 | 90 |
| 030 | 0.30 | 2.45 | 450 | 2200 | 15 | 90 |
| 035 | 0.35 | 2.90 | 450 | 2200 | 15 | 90 |
| 0.40 | 0.40 | 3.30 | 450 | 2200 | 15 | 90 |
Feather:
Galvanized Hy Rib Mesh is manufactured from hot-dipped galvanized steel sheets. Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
