| Material: | GALVANIZE PLATE | Width: | 0.45M |
|---|---|---|---|
| Length: | 2-3M | Rib Height: | 14-20mm |
| Thickness: | 0.18-0.57mm | Color: | Silver |
| High Light: | high rib mesh,high rib sheet |
||

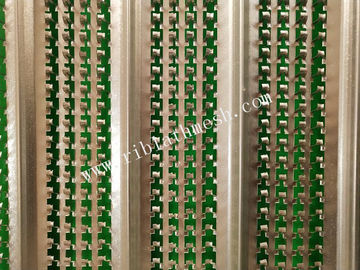

0.20mm Thickness Galvanized High Ribbed Formwork For Building 2.2m Length
High Ribbed Formwork is made of the hot-dipped galvanized steel sheets.2.2m ,2.5m,3m length are the popular length in the world market.The 0.20mm thickness goods is very popular in the Southest Asia market.Its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security.
Used in:
Tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
Specification:
| model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
| 021 | 0.21 | 1.70 | 450 | 2200 | 14-20 | 90 |
| 023 | 0.23 | 1.90 | 450 | 2200 | 14-20 | 90 |
| 030 | 0.30 | 2.48 | 450 | 2200 | 14-20 | 90 |
| 035 | 0.35 | 2.90 | 450 | 2200 | 14-20 | 90 |
| 040 | 0.40 | 3.30 | 450 | 2200 | 14-20 | 90 |
| 045 | 0.45 | 3.70 | 450 | 2200 | 14-20 | 90 |
| 050 | 0.50 | 4.10 | 450 | 2200 | 14-20 | 90 |
