Name: | Expanded Rib Lath | Width: | 600mm |
---|---|---|---|
Length: | 2-3m | Material: | Galvanized Sheet |
Hole Size: | 7*15mm | Thickness: | 0.2-0.4mm |
Highlight: | stainless steel rib lath,galvanized lath mesh |

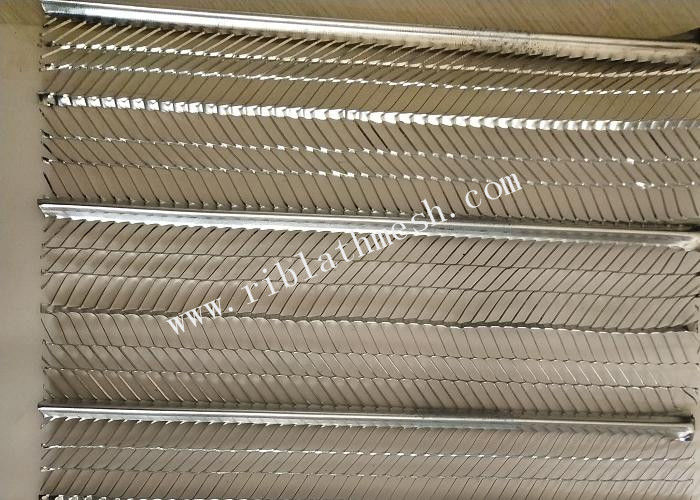

JF0706 2.4m Length Galvanized Width Metal Rib Lath 600mm Width For Construction
.
JF0706 is one type of rib lath .The hole size is 7*15mm .This mesh is pressed and stretched by a professional machine.We can produce the length less than 4 m.Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface. Rib Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.
Size:
TYPE | THICKNESS(MM) | SW*LW(mm) | Tendons High(mm) | Reinforcement Distance(mm) | Width(MM) |
XT0706 | 0.26-0.40 | 7×15 | 8 | 100 | 600 |
We could produce the thickness :0.2-0.4mm ,The very popular thickness is 0.3mm.
