| Material: | GALVANIZE PLATE | Width: | 0.45M |
|---|---|---|---|
| Length: | 2-3M | Rib Height: | 14-20mm |
| Thickness: | 0.18-0.40mm | Color: | Silver |
| High Light: | 0.18mm High Ribbed Formwork,2.1m High Ribbed Formwork,building High Ribbed Formwork |
||

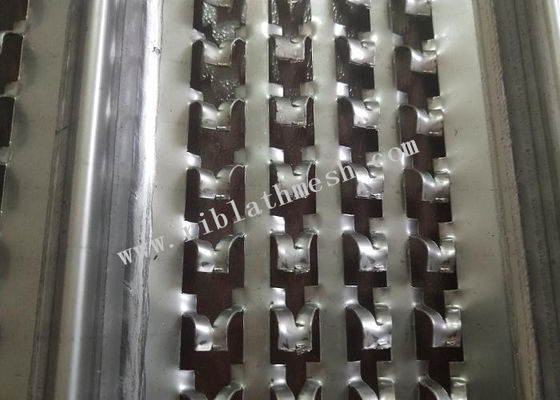

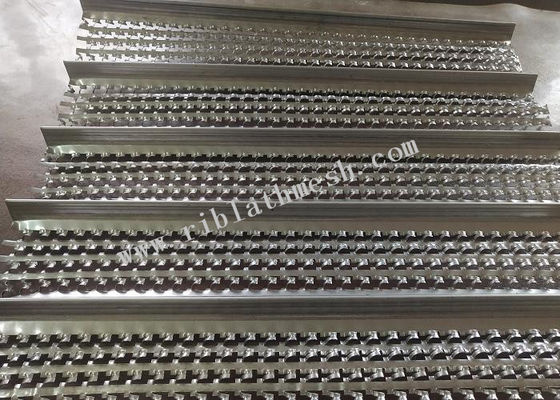

0.18mm Thickness 2.1m Length High Ribbed Formwork For Building
High Ribbed Formwork is made of the hot-dipped galvanized steel sheets or Stainless steel plate.And the popular Length :2- 3m.Its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security.
Used in:
Tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
Specification:
| model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
| 018 | 0.18 | 1.35 | 450 | 2200 | 15 | 90 |
| 020 | 0.20 | 1.50 | 450 | 2200 | 15 | 90 |
| 023 | 0.23 | 1.75 | 450 | 2200 | 15 | 90 |
| 025 | 0.25 | 1.90 | 450 | 2200 | 15 | 90 |
| 030 | 0.30 | 2.45 | 450 | 2200 | 15 | 90 |
