2m Length 0.61m Width Expanded Metal Rib Lath 10*20mm Hole For Building

Large Image : 2m Length 0.61m Width Expanded Metal Rib Lath 10*20mm Hole For Building

Product Details:

Place of Origin:	ANPING HEBEI CHINA
Brand Name:	JiaFu
Model Number:	JF0508

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Packaging Details:	700pcs/pallet
Delivery Time:	15-20days
Supply Ability:	1500pcs/day

Contact Now

Detailed Product Description

Width:	610mm	Hole:	10*20mm
Length:	1-3m	Rib Height:	5mm
Material:	Galvaninzed Plate	Name:	Rib Lath Mesh
High Light:	expanded metal rib lath , 2m length metal rib lath , 0.61m width metal rib lath

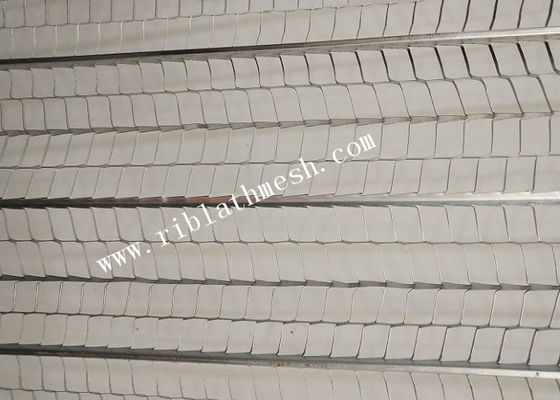

2m Length 0.61m Width Expanded Metal Rib Lath 10*20mm Hole For Building

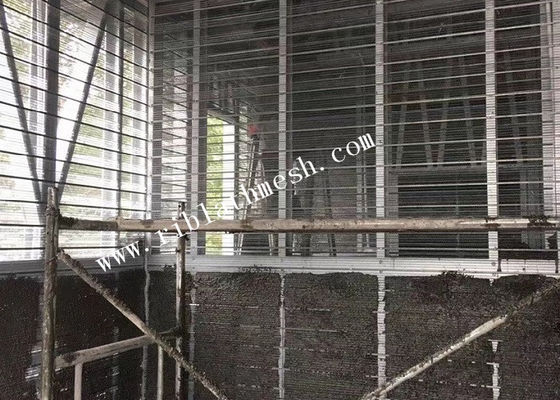

Rib Lath Mesh is a kind of expanded metal .The width is 610mm.Hole size is:10*20mm. We can produce the length less than 3 meters.. The popular Length in the world market is 2.1m-2.5m ,Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface. Rib Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.

TYPE	THICKNESS(MM)	SW*LW(mm)	Tendons High(mm)	Reinforcement Distance(mm)	Width(MM)
JF0508	0.3	10*20	5	150	610

packing: 750pcs/pallet popular length: 2.1m,2.2m,2.4m,2.5m,3m
