20mm Rib Height Galvanized Hy Rib Formwork For Engineering

20mm Rib Height Galvanized Hy Rib Formwork For Engineering
20mm Rib Height Galvanized Hy Rib Formwork For Engineering 20mm Rib Height Galvanized Hy Rib Formwork For Engineering

Large Image :  20mm Rib Height Galvanized Hy Rib Formwork For Engineering

Product Details:
Place of Origin: ANPING HEBEI CHINA
Brand Name: JiaFu
Model Number: JFHR21
Payment & Shipping Terms:
Minimum Order Quantity: 500
Packaging Details: 500 or 1000pcs/pallet
Delivery Time: 15-20days
Supply Ability: 5000pcs/day
Detailed Product Description
Name: High Ribbed Formwork WIDTH: 0.45M
LENGTH: 2-3M Rib Height: 21mm
Thickness: 0.2-0.57mm MATERIAL: Galvanized Plate
High Light:

20mm rib height hy rib formwork

,

galvanized hy rib formwork

,

hy rib formwork for engineering

20mm Rib Height Galvanized High Ribbed Formwork For Construction

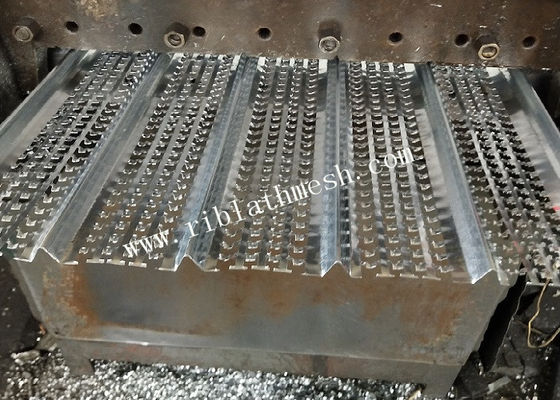

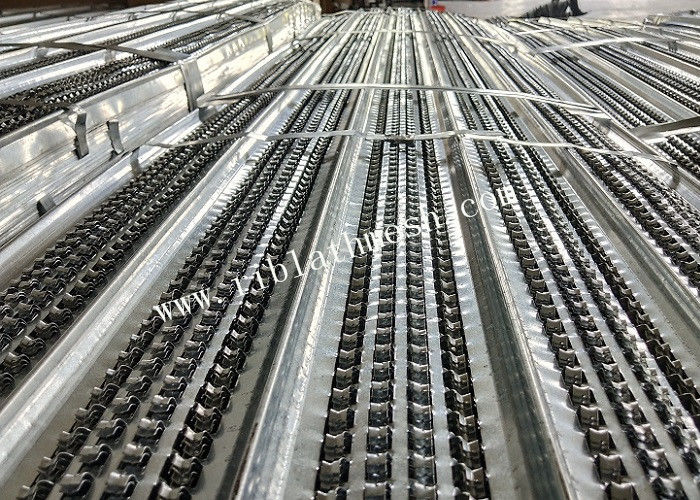

High Ribbed Formwork is made form hot dipped galvanized plate..Non-welded expanded mesh.It has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.


Specification:

The follows is the 15mm Height specification for you reference:

Model Thickness (mm) Weight (kg) Width (mm) Length (mm) Rib Height (mm) Rib Distance(mm)
021 0.21 1.70 450 2200 14-20 90
023 0.23 1.90 450 2200 14-20 90
030 0.30 2.48 450 2200 14-20 90
035 0.35 2.90 450 2200 14-20 90
040 0.40 3.30 450 2200 14-20 90
045 0.45 3.70 450 2200 14-20 90
050 0.50 4.10 450 2200 14-20 90



20mm Rib Height Galvanized Hy Rib Formwork For Engineering 0
