| Name: | HY Rib Mesh | WIDTH: | 0.45M |
|---|---|---|---|
| LENGTH: | 2-3M | Rib Height: | 14-20mm |
| Thickness: | 0.18-0.57mm | MATERIAL: | Galvanized Plate |
| High Light: | 0.45m width hy rib mesh,2.4m length hy rib mesh,excellent engineering quality high rib mesh |
||

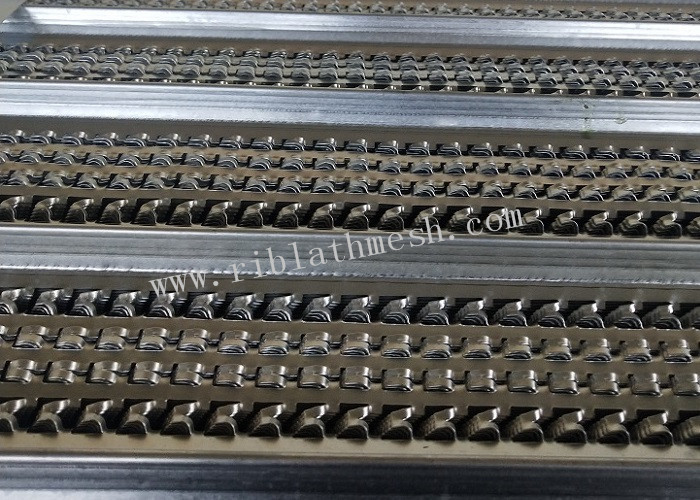

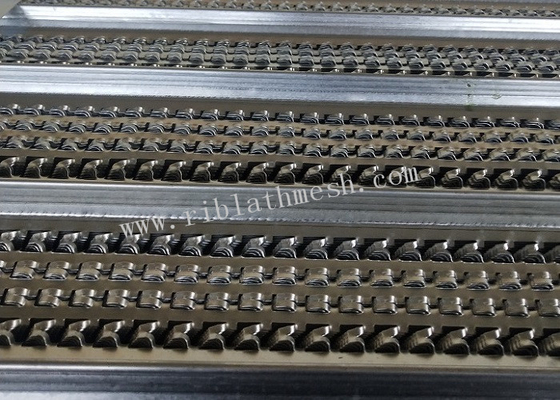

0.45m Width Galvanized HY Rib Mesh 2.4m Length Has Excellent Engineering Quality
HY Rib Mesh has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.HY Rib Mesh has better anti-stress capability and forming flexibility than normal metal lath.
Raw Material:
Hot-dipped galvanized steel sheets
Specification:
The follows is the 20mm Height specification for you reference:
| Model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
| 2021 | 0.21 | 1.70 | 450 | 2200 | 20 | 90 |
| 2023 | 0.23 | 1.90 | 450 | 2200 | 20 | 90 |
| 2025 | 0.25 | 2.10 | 450 | 2200 | 20 | 90 |
| 2030 | 0.30 | 2.50 | 450 | 2200 | 20 | 90 |
| 2035 | 0.35 | 2.90 | 450 | 2200 | 20 | 90 |
| 2040 | 0.40 | 3.40 | 450 | 2200 | 20 | 90 |
| 2045 | 0.45 | 3.80 | 450 | 2200 | 20 | 90 |
| 2050 | 0.50 | 4.10 | 450 | 2200 | 20 | 90 |
| 2057 | 0.57 | 4.70 | 450 | 2200 | 20 | 90 |
How to Install High Ribbed Formwork
