Construction 2m Length Galvanized Hy Rib Mesh 0.35mm Thickness

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

Construction 2m Length Galvanized Hy Rib Mesh 0.35mm Thickness

Construction 2m Length Galvanized Hy Rib Mesh 0.35mm Thickness
Construction 2m Length Galvanized Hy Rib Mesh 0.35mm Thickness

Large Image :  Construction 2m Length Galvanized Hy Rib Mesh 0.35mm Thickness

Product Details:
Place of Origin: ANPING HEBEI CHINA
Brand Name: JiaFu
Model Number: JFHR21
Payment & Shipping Terms:
Minimum Order Quantity: 500
Packaging Details: 500 or 1000pcs/pallet
Delivery Time: 15-20days
Supply Ability: 5000pcs/day
Detailed Product Description
Name: HY Rib Mesh WIDTH: 0.45M
LENGTH: 2-3M Rib Height: 21mm,15mm
Thickness: 0.2-0.4mm MATERIAL: Galvanized Plate
High Light:

construction hy rib mesh

,

2m length high rib mesh

,

0.35mm thickness high rib mesh

2m Length Galvanized HY Rib Mesh 0.35mm Thickness For The Construction

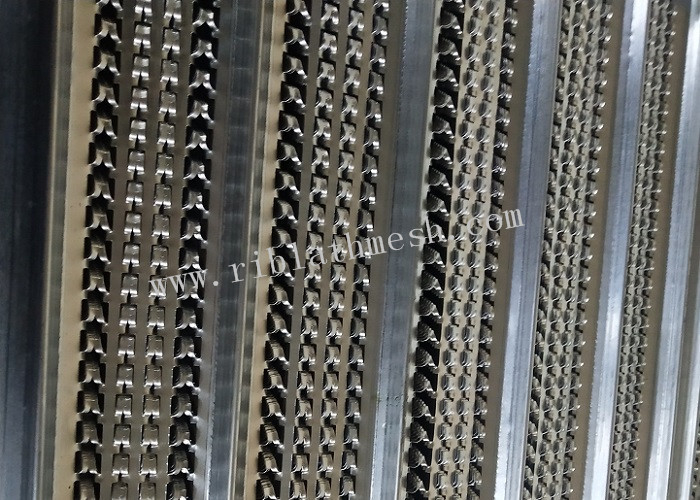

Hy Rib Mesh is made of the hot dipped galvanized plate.This mesh is  a specially designed expanded metal lath for the construction of suspended ceilings and stud wall partitions.This lath has an integral stiffening ribs rolled-formed during manufacturing. The mesh areas of the lath are expanded.The Rib Lath is easy to handle and can be cut with handshears and bent to the required angles.



Material:


Galvanized plate .

Specification:

The follows is the 15mm Height specification for you reference:

Model Thickness (mm) Weight (kg) Width (mm) Length (mm) Rib Height (mm) Rib Distance(mm)
021 0.21 1.70 450 2200 14-20 90
023 0.23 1.90 450 2200 14-20 90
030 0.30 2.48 450 2200 14-20 90
035 0.35 2.90 450 2200 14-20 90
040 0.40 3.30 450 2200 14-20 90
045 0.45 3.70 450 2200 14-20 90
050 0.50 4.10 450 2200 14-20 90



Feature



Hy Rib Mesh has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
