450mm Width HY Rib Mesh Formwork Hot Dipped Galvanized 2200mm Length

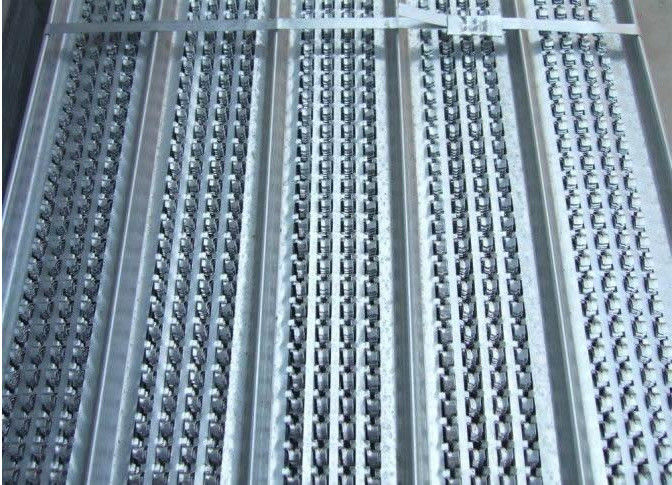

Large Image : 450mm Width HY Rib Mesh Formwork Hot Dipped Galvanized 2200mm Length

Product Details:

Place of Origin:	ANPING,CHINA
Brand Name:	SHUANGJIAO
Model Number:	030

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	usd 1.6-2.5/piece
Packaging Details:	pallet
Delivery Time:	10-15days
Supply Ability:	3000pieces/day

Contact Now

Detailed Product Description

Material:

Hot-dipped Galvanized Steel Sheet

Width:

450mm

Length:

2200mm

Thickness:

0.30mm

Highlight:

hy rib lath

hy rib formwork

High ribbed formwork is manufactured from hot-dipped galvanised steel sheets.

Because its meshes and U patterns,it has better anti-stress capability and forming flexibility than normal metal lath.This product has excellent engineering quality construction security and widely used in tunnel bridges,valve basement systems,sewage systems,subways,retaining walls,nuclear power plants,ship-yards,water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc.As concrete permanent assembly-free formwork.

Unbeatable quality hy ribbed mesh made in China
Thickness (mm)	Weight (kg)	Width (mm)	Length (mm)	Rib Height (mm)	Rib Distance (mm)
0.21	1.70	450	2200	14-20	90
0.23	1.90	450	2200	14-20	90
0.30	2.48	450	2200	14-20	90
0.35	2.90	450	2200	14-20	90
0.40	3.30	450	2200	14-20	90
0.45	3.70	450	2200	14-20	90
0.50	4.10	450	2200	14-20	90

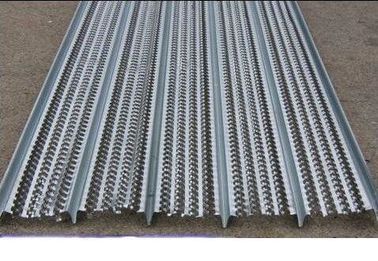

450mm Width HY Rib Mesh Formwork Hot Dipped Galvanized 2200mm Length 0

450mm Width HY Rib Mesh Formwork Hot Dipped Galvanized 2200mm Length 1

450mm Width HY Rib Mesh Formwork Hot Dipped Galvanized 2200mm Length 2

450mm Width HY Rib Mesh Formwork Hot Dipped Galvanized 2200mm Length 3

450mm Width HY Rib Mesh Formwork Hot Dipped Galvanized 2200mm Length 4
