Wall Plaster HY Rib Sheet U Type Formwork Mesh 0.21-0.5mm Thicness For Construction

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

Wall Plaster HY Rib Sheet U Type Formwork Mesh 0.21-0.5mm Thicness For Construction

Wall Plaster HY Rib Sheet U Type Formwork Mesh 0.21-0.5mm Thicness For Construction
Wall Plaster HY Rib Sheet U Type Formwork Mesh 0.21-0.5mm Thicness For Construction Wall Plaster HY Rib Sheet U Type Formwork Mesh 0.21-0.5mm Thicness For Construction

Large Image :  Wall Plaster HY Rib Sheet U Type Formwork Mesh 0.21-0.5mm Thicness For Construction

Product Details:
Place of Origin: HEBEI CHINA
Brand Name: XINGTAI
Model Number: 0450
Payment & Shipping Terms:
Minimum Order Quantity: 500 PIECES
Price: USD1.59-USD4.50 PER PIECE
Packaging Details: 500 PIECES PER PALLET
Delivery Time: 15-20 DAYS
Supply Ability: 50,000 PIECES PER MONTH
Detailed Product Description
RAW MATERIAL: GALVANIZED STEEL THICKNESS: 0.21MM, 0.23MM, 0.26MM, 0.28MM, 0.30MM, 0.35MM, 0.40MM, 0.45MM, 0.50MM
WIDTH: 450MM RIB HEIGHT: 14MM-21MM
High Light:

hy rib lath

,

hy rib formwork

HY RIB, THICKNESS: 0.21mm, 0.23mm, 0.26mm, 0.28mm, 0.30mm, 0.35mm, 0.40mm, 0.45mm, 0.50mm, WIDTH: 450MM RIB HEIGHT: 21MM

HY RIB

RAW MATERIALS: GALVANIZED STEEL

THICKNESS: 0.21MM TO 0.50MM

WIDTH: 450MM

LENGTH: 2.0M TO 3.0M

RIB HEIGHT: 14MM TO 21MM

PACKING: 500 PIECES PER PALLET

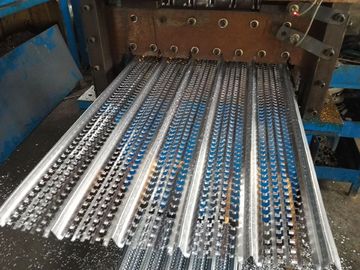

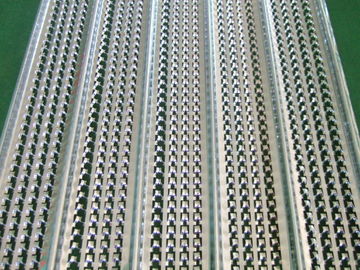

Hy Rib is a kind of formwork mesh, manufactured from galvanized steel sheets.



Hy Rib has better anti-stress capability and forming flexibility than normal metal lath, because of its meshes and U patterns.



Hy Rib has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc.



As concrete permanent assembly-free form work, Hy Rib will make the formwork more easier.

Wall Plaster HY Rib Sheet U Type Formwork Mesh 0.21-0.5mm Thicness For Construction 0Wall Plaster HY Rib Sheet U Type Formwork Mesh 0.21-0.5mm Thicness For Construction 1

Model Thickness (mm) Weight (kg) Width (mm) Length (mm) Rib Height (mm) Rib Distance(mm)
021 0.21 1.70 450 2000-3000 14-21 90
023 0.23 1.90 450 2000-3000 14-21 90
030 0.30 2.48 450 2000-3000 14-21 90
035 0.35 2.90 450 2000-3000 14-21 90
040 0.40 3.30 450 2000-3000 14-21 90
045 0.45 3.70 450 2000-3000 14-21 90
050 0.50 4.10 450 2000-3000 14-21  90
