| Name: | HY Rib Mesh | WIDTH: | 0.45M |
|---|---|---|---|
| LENGTH: | 2-3M | Rib Height: | 15mm |
| Thickness: | 0.18-0.4mm | MATERIAL: | Galvanized Plate |
| High Light: | hy rib formwork,hy rib sheet |
||

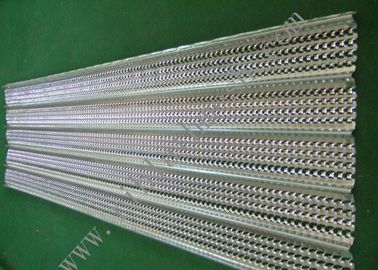

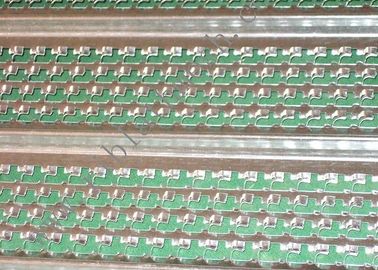

15mm Rib Height HY Rib Mesh has better anti-stress capability and forming flexibility than normal metal lath
Raw Material:
Hot-dipped galvanized steel sheets
Specification:
The follows is the 15mm Height specification for you reference:
| Model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
| 018 | 0.18 | 1.35 | 450 | 2200 | 15 | 90 |
| 021 | 0.21 | 1.60 | 450 | 2200 | 15 | 90 |
| 023 | 0.23 | 1.70 | 450 | 2200 | 15 | 90 |
| 025 | 0.25 | 1.90 | 450 | 2200 | 15 | 90 |
| 030 | 0.30 | 2.45 | 450 | 2200 | 15 | 90 |
| 035 | 0.35 | 2.90 | 450 | 2200 | 15 | 90 |
| 0.40 | 0.40 | 3.30 | 450 | 2200 | 15 | 90 |
Feature:
HY Rib Mesh has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
How to Install High Ribbed Formwork
