| Width: | 450MM | Length: | 1-4M |
|---|---|---|---|
| Rib Height: | 15MM | Hole: | 5*10MM |
| Material: | Galvanized Sheet | Rib Distance: | 90mm |
| High Light: | hy rib lath,hy rib formwork |
||

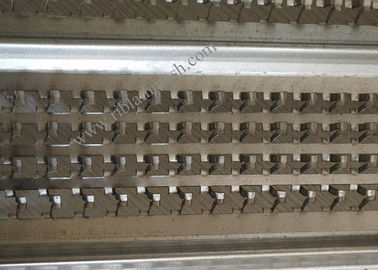

High Ribbed Formwork is made of galvanized plate. Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. We can produce the thickness from 0.15mm to 0.57mm.This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
Specification of High Rib Mesh
Width: 450mm is usual, 440mm and 445mm also can be made
Length: 1m-3m
Thickness:0.15mm,0.2mm,0.25mm,0.3mm,0.35mm ,0.40mm,0.57mm
The follows is the 2.2 m goods weight for your reference:
| del | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
| 021 | 0.21 | 1.70 | 450 | 2200 | 21 | 90 |
| 023 | 0.23 | 1.90 | 450 | 2200 | 21 | 90 |
| 030 | 0.30 | 2.48 | 450 | 2200 | 21 | 90 |
| 035 | 0.35 | 2.90 | 450 | 2200 | 21 | 90 |
| 040 | 0.40 | 3.30 | 450 | 2200 | 21 | 90 |
