Name: | High Ribbed Formwork | LENGTH: | 1-4M |
---|---|---|---|
RIB HEIGHT: | 15MM | HOLE: | 5*10MM |
MATERIAL: | GALVANIZED PLATE | Width: | 450mm |
High Light: | hy rib lath,hy rib formwork |

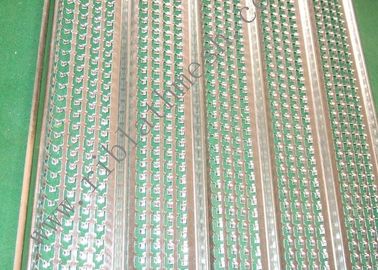

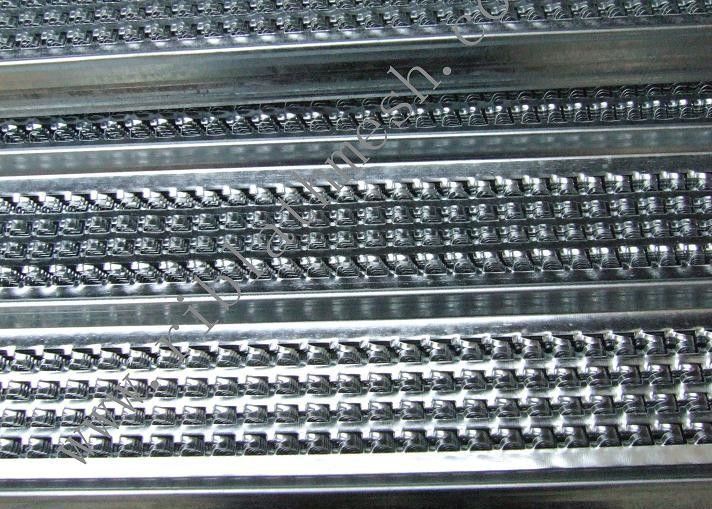

Hy Rib Mesh the width is :0.45mm,Length from 1m-4m.Hole:5*10mm.15mm Rib Height goods is very popular in the world market.
Model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
018 | 0.18 | 1.35 | 450 | 2200 | 15 | 90 |
021 | 0.21 | 1.60 | 450 | 2200 | 15 | 90 |
023 | 0.23 | 1.70 | 450 | 2200 | 15 | 90 |
025 | 0.25 | 1.90 | 450 | 2200 | 15 | 90 |
030 | 0.30 | 2.45 | 450 | 2200 | 15 | 90 |
035 | 0.35 | 2.90 | 450 | 2200 | 15 | 90 |
0.40 | 0.40 | 3.30 | 450 | 2200 | 15 | 90 |
Feather:
Galvanized Hy Rib Mesh is manufactured from hot-dipped galvanized steel sheets. Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
