Ss316l 20mm Rib Height 3m Length Hy Rib Mesh For Tunnels Bridges

Large Image : Ss316l 20mm Rib Height 3m Length Hy Rib Mesh For Tunnels Bridges

Product Details:

Place of Origin:	ANPING HEBEI CHINA
Brand Name:	JiaFu
Model Number:	JFH20

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Packaging Details:	500 OR 1000PCS/PALLET
Delivery Time:	10-15DAYS
Supply Ability:	5000PCS/DAY

Contact Now

Detailed Product Description

Name:	High Ribbed Formwork	LENGTH:	1-4M
RIB HEIGHT:	19MM	HOLE:	5*10MM
MATERIAL:	Ss316L	Width:	450mm
Highlight:	ss 316l hy rib mesh , hy rib mesh for tunnels bridges , 20mm rib height hy rib mesh

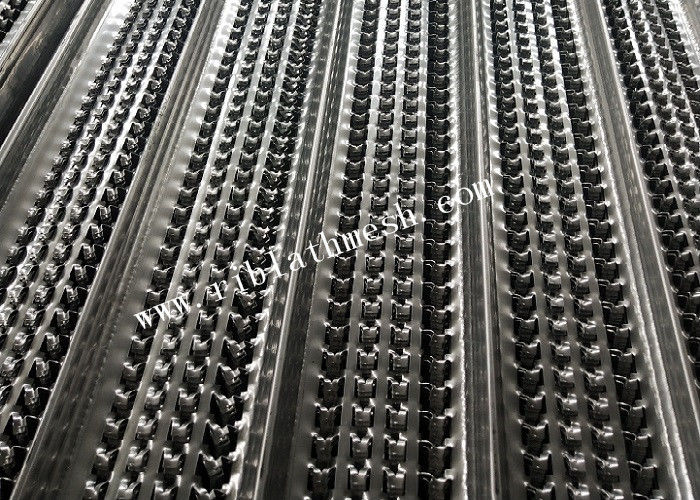

SS316L Material Hy Rib Mesh 20mm Rib Height 3m Length Used In Tunnels Bridges

SS316L Raw Material Hy Rib Mesh is manufactured from SS316L plate.We can produce the goods thickness from 0.2mm-0.4.This material is not easy to rust.Used in very demanding projects Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.

Model	Thickness (mm)	Weight (kg)	Width (mm)	Length (mm)	Rib Height(mm)	Rib Distance (mm)
021	0.21	1.70	450	2200	14-20	90
023	0.23	1.90	450	2200	14-20	90
030	0.30	2.48	450	2200	14-20	90
035	0.35	2.90	450	2200	14-20	90
040	0.40	3.30	450	2200	14-20	90

Ss316l 20mm Rib Height 3m Length Hy Rib Mesh For Tunnels Bridges 0
